System Specifications

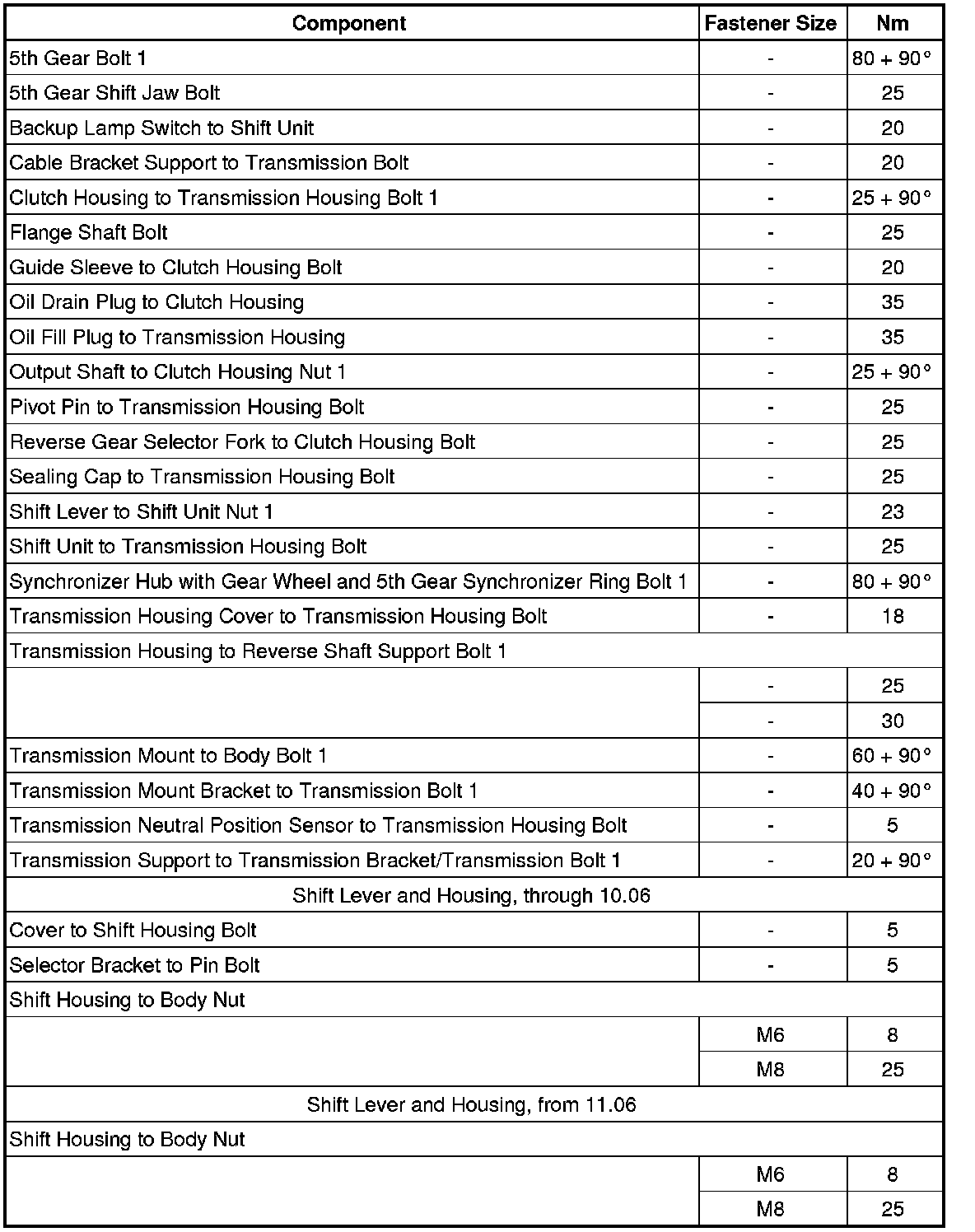

Fastener Tightening Specifications





• 1 Always replace

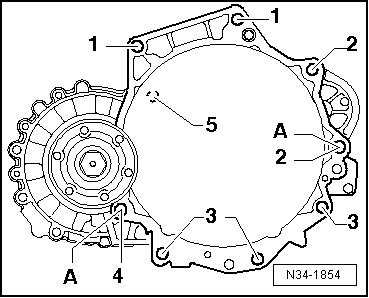

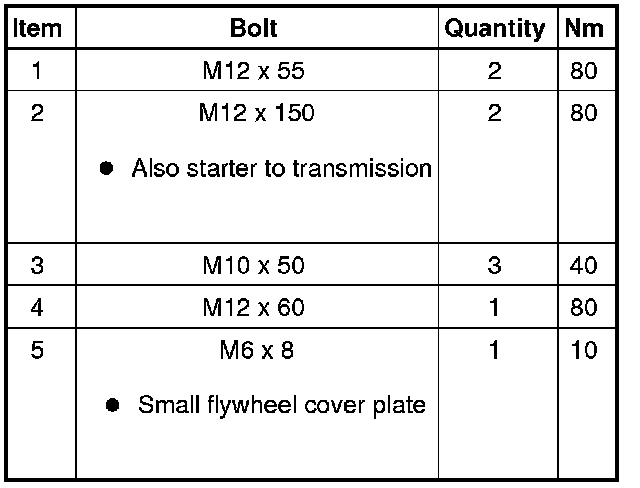

Transmission to Gas Engine Bolt Tightening Sequence and Specifications, Jetta MY 05 through 10, Jetta SportWagen/Jetta Wagon MY 09, and Jetta SportWagen/Golf Wagon from MY 10









- A - alignment pins for centering

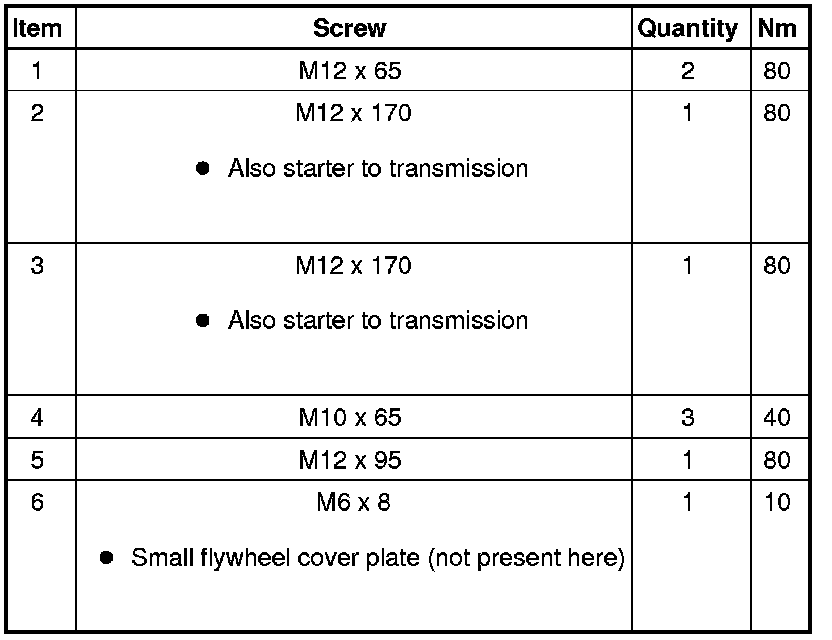

Transmission to Diesel Engine Bolt Tightening Sequence and Specifications, Jetta MY 05 through 10









- A - alignment pins for centering

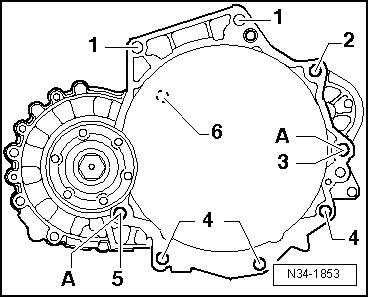

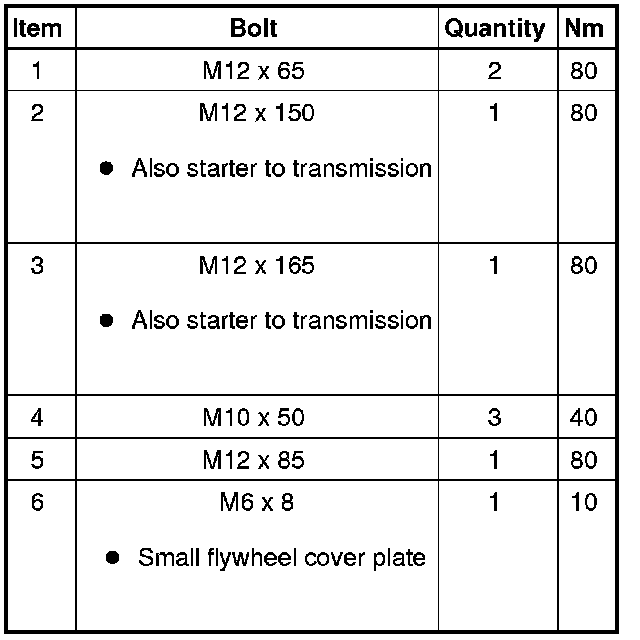

Transmission to Engine Bolt Tightening Sequence and Specification, Jetta from MY 11









- A - alignment pins for centering
