Access/Start Authorization Antenna In Rear Bumper (R136)







Access/Start Authorization Antenna In Rear Bumper (R136)

Component location of access/start authorization antenna in rear bumper is behind the rear bumper cover.

• No coding, basic setting or adaptation is necessary if Access/Start Authorization Antenna in rear bumper is replaced. Erase the resulting entry in the DTC memory using Vehicle Diagnostic, Testing and Information System (VAS 5051B).


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removal

- Remove the rear bumper cover.

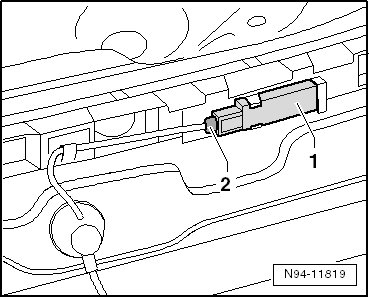

- Release the access/start authorization antenna in rear bumper (R136) - 1 - from lower part of bumper, being careful of connected wires.






- Disconnect the connector - 2 -. Remove the access/start authorization antenna in rear bumper - 1 -.

Installation

Installation is performed in the reverse order of removal.
