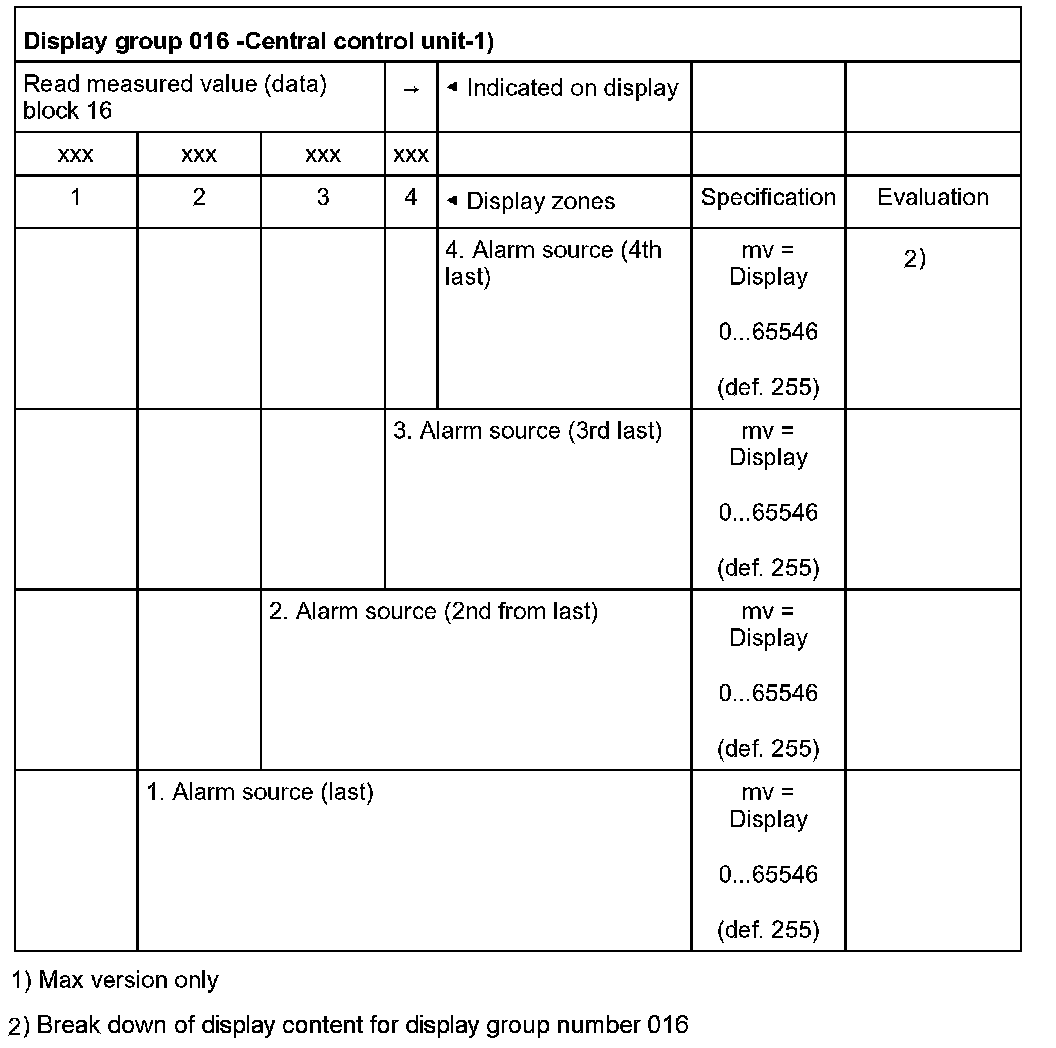

Display Group 016

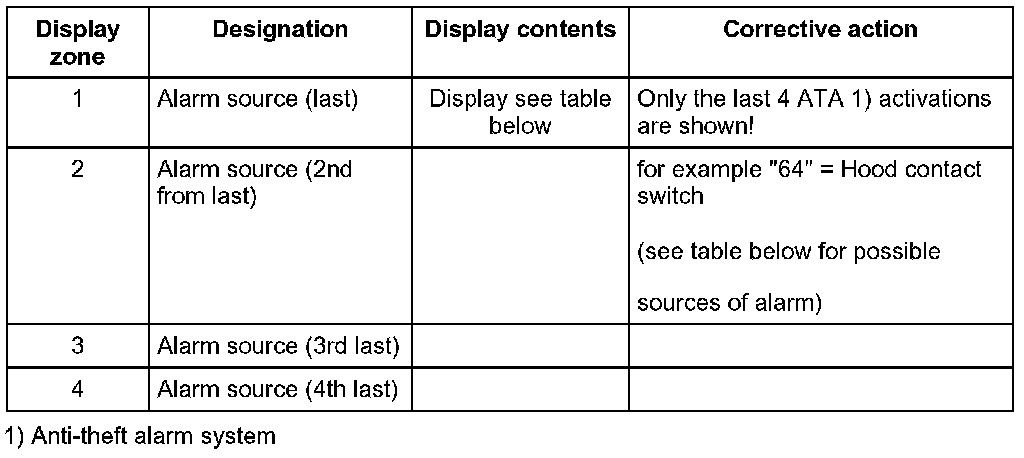

Break Down Of Display Content For Display Group Number 016 Break down of display content for display group number 016 Possible sources of alarm Display Trunk lid/tailgate contact switch
1
Front passenger rotary latch switch
8
Ignition
16
Immobilizer
17
Interruption intelligent horn
18
Interior monitoring
32
Hood contact switch, radio
64
Driver's rotary latch switch
128
No alarm
255
