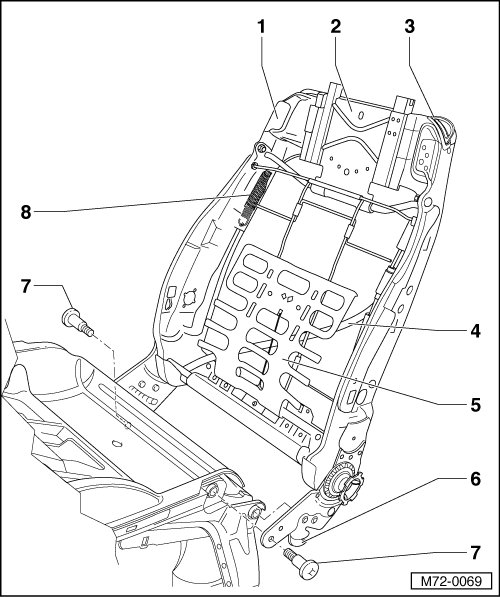

Backrest Frame Assembly Overview
Front SeatsBackrest Frame Assembly Overview 1 Backrest Frame 2 Active Headrest Guide 3 Actuating Lever 4 Backrest Release Cable •
Removing => [ Backrest Release Control Cable from 05.2003 ]
Front Seats 5 Lumbar Support Frame •
Removing => [ Lumbar Support
Frame from 05.2003 ]
Front Seats 6 Catches 7 Bolt •
20 Nm
•
Insert with locking fluid (D 000 600 A2)
8 Spring
