Heating and A/C Controls






Heating and A/C Controls

Removing

- Remove center air outlet console => [ Center Air Outlet Console ] Center Air Outlet Console

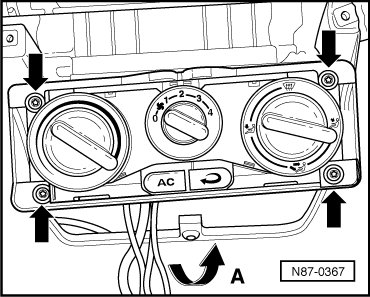

- Remove mounting screws - arrows -.

- Lift out controls with cables from instrument panel in direction of - arrow A -.

- Detach cables from controls.

- Disconnect electrical connector.

With controls removed, check function of heating and ventilation cables as follows:





- Move cables in and out several times - arrow -.

- Replace damaged or stiff cables.

Installing

• Cable sleeves are color coded.

• All doors must audibly move onto stops when turning controls.

• Always check cables before installing. Replace tight or damaged cables.

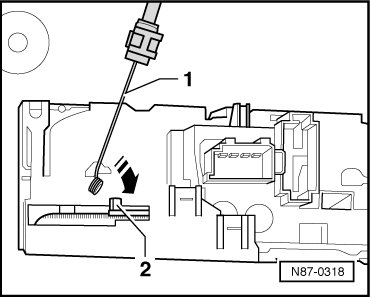

- Attach cable - 1 - to actuating arm - 2 - as indicated-arrow-.

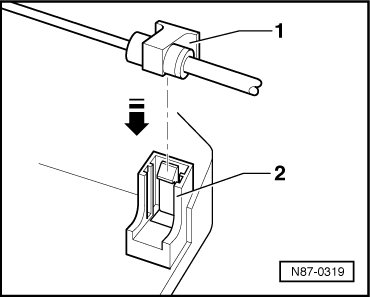

- Press cable for footwell/defrost, cable for temperature door and cable for central door - 1 - into retainer - 2 - until it engages.





Cable Color Codes

• Footwell/defrost door cable: green

• Central door cable: yellow

• Temperature door cable: beige

- Check and adjust cables => [ Heating and A/C Cables Component Overview ] Heating and A/C Cables Component Overview.

- Connect electrical connector

- Fit controls into instrument panel opening and install mounting screws.
