09G Transmission

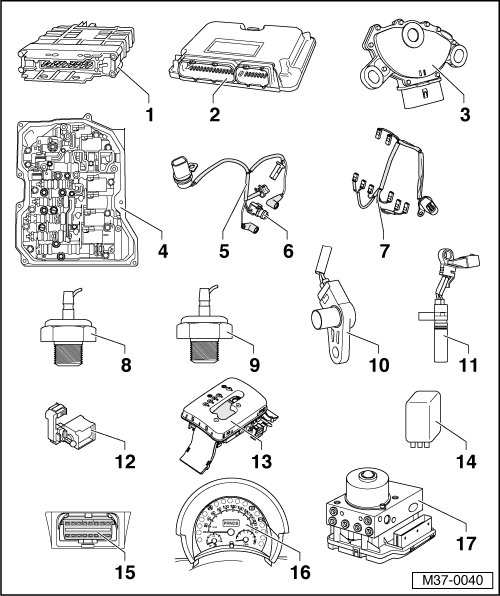

Electrical and Electronic Component Locations





3 Multi-Function Transmission Range (TR) Switch ( F125)

13 Tiptronic Switch (F189)

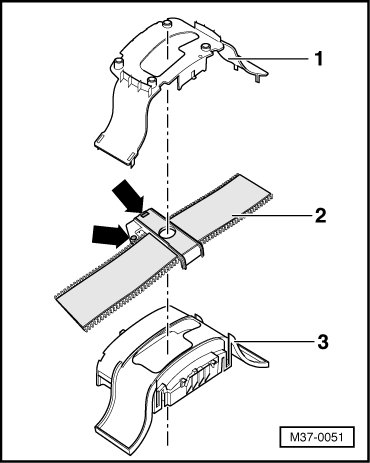

Tiptronic Switch (F189) is integrated into circuit board, which is located in shift mechanism cover.

It consists of hall sensors, which are activated by a magnet - arrow - on transverse slide of cover strip - 2 -.

If there are malfunctions, it must first be checked whether the magnet - arrow - on transverse slide of cover strip - 2 - is secured correctly, replace cover strips if necessary. Selector mechanism cover with integrated circuit board must only be replaced after checking the wires.
