Ignition Switch: Service and Repair






Ignition Switch

CAUTION!
When disconnecting and connecting the Battery ( A), the procedure must be followed as described in the Repair Information. Refer to => [ Battery A, Disconnecting and Connecting ] Battery A, Disconnecting and Connecting.

Removing

- Disconnect the Battery (A). Refer to => [ Battery A, Disconnecting and Connecting ] Battery A, Disconnecting and Connecting.

- Remove the steering column trim.

- Disconnect the connector on the Ignition Switch ( D).

- Remove the sealing pain in the threaded holes for the screws - A -.

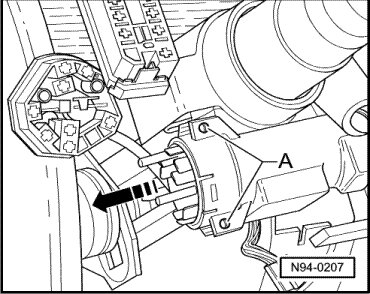

- Loosen the screws - A - and remove the Ignition Switch (D) from the steering lock housing in - direction of arrow -.

Installing

- Install the Ignition Switch (D) in the steering lock housing.

• Make sure the Ignition Switch (D) and the lock cylinder are in the same position, for example, "ignition ON" when installing the Ignition Switch (D).

- Tighten the screws and seal the threaded holes with sealing paint.
