Memory Seat / Steering Column Adjustment Control Module -J136-







Control modules in interior

Memory Seat/Steering Column Adjustment Control Module -J136-









Component Location:

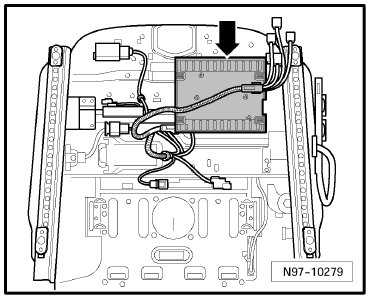

Below front seat on driver's side -Arrow-

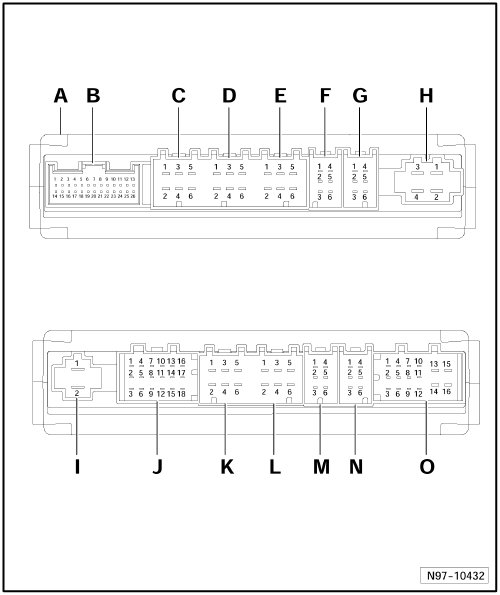

Pin Arrangements:







A - Memory Seat/Steering Column Adjustment Control Module -J136-
Connector:

B - 26-Pin Connector -T26b-

C - 6-Pin Connector -T6bj-

D - 6-Pin Connector -T6bq-

E - 6-Pin Connector -T6bi-

F - 6-Pin Connector -T6bh-

G - 6-Pin Connector -T6bp-

H - 4-Pin Connector -T4br-

I - Double Connector -T2- , not used

J - Double Connector -T2- , not used

K - 6-Pin Connector -T6- , not used

L - 6-Pin Connector -T6- , not used

M - 6-Pin Connector -T6- , not used

N - 6-Pin Connector -T6- , not used

O - 16-Pin Connector -T16- , not used
