Transmission Position Sensor/Switch: Locations



Electrical/electronic components and component locations 09M, 6 Speed FWD A/T

Multi-Function Transmission Range (TR) Switch F125:

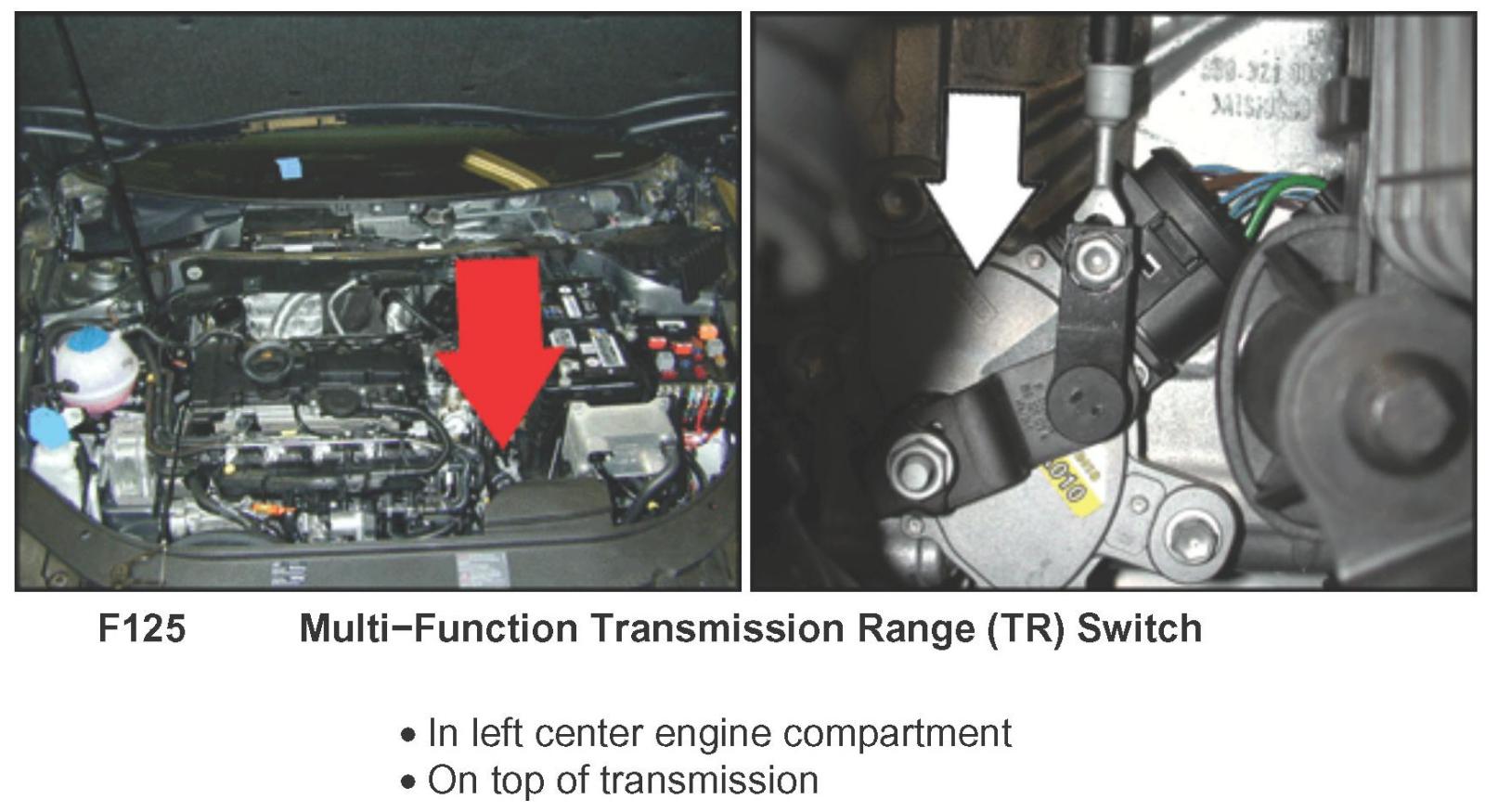

Multi-Function Transmission Range (TR) Switch F125
Component location: The multi-function switch is located on upper side of transmission.





Tiptronic Switch F189
Component location: The Tiptronic switch is integrated in selector mechanism.

For vehicles with multi-function steering wheel, buttons on steering wheel and corresponding wire connections must be checked.
