System Specifications

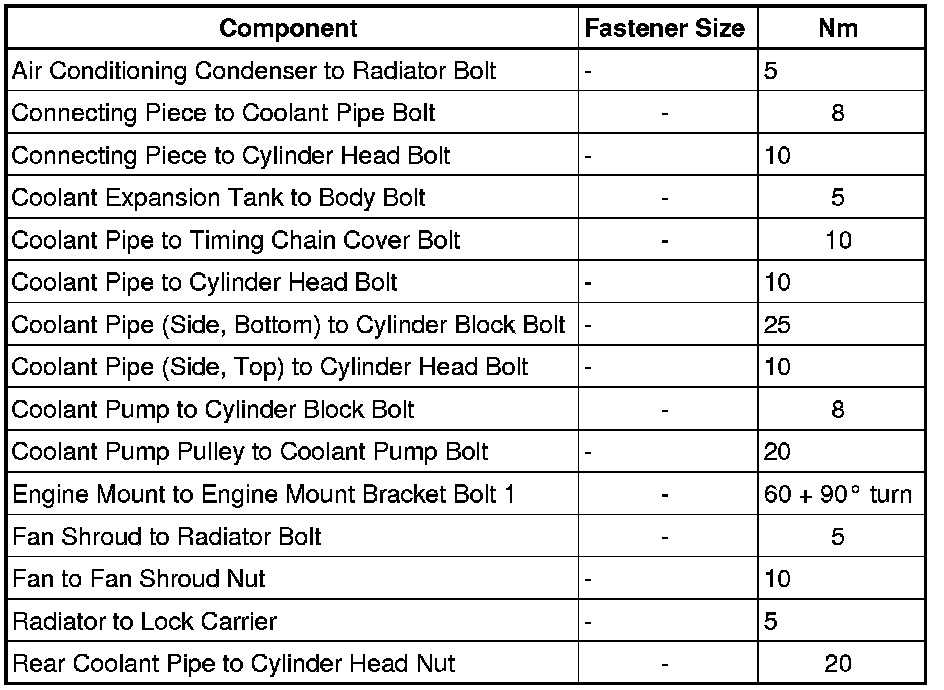

Fastener Tightening Specifications •
1 Always replace

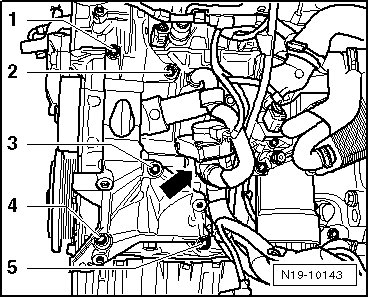

Accessory Bracket Bolt Tightening Sequence and Specification -
Tighten bolt -
2 and 4 - by hand.
-
Tighten bolts -
1, 3 and 5 - by hand.
-
Tighten all bolts uniformly and in a diagonal sequence to 23 Nm
