USB Connection For Mobile Digital Device

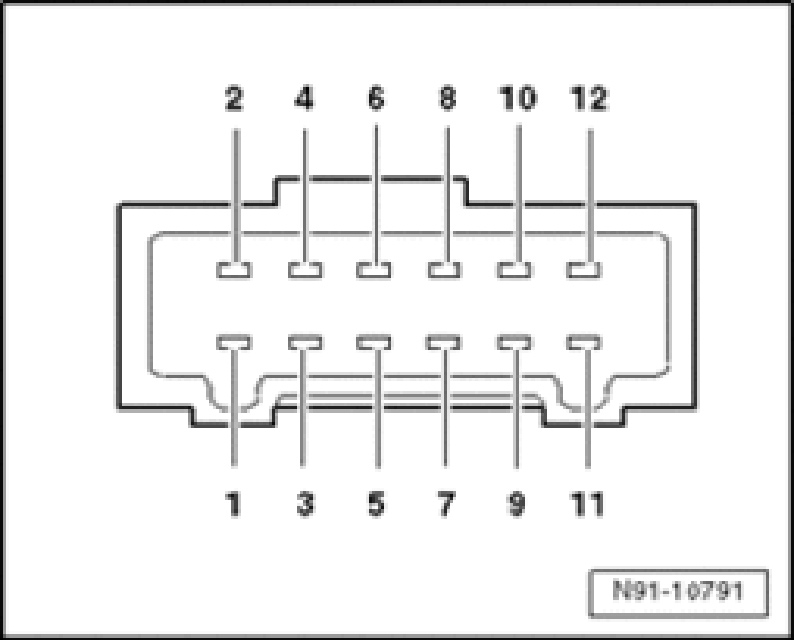

Multi-pin Connector Assignments 1.
Data In, (here output)
2.
Data clock
3.
Voltage supply, terminal 31
4.
Data Out, (here input)
5.
Not assigned
6.
Voltage supply, terminal 30
7.
Right LF audio signal, plus
8.
Control wire, plus, switched from radio
9.
LF audio signal, minus
10.
Left LF audio signal, plus
11.
Not assigned
12.
Not assigned
