Climatronic/Climatic Cover, Removing and Installing



Climatronic/Climatic Cover, Removing And Installing

NOTE:
- Removal and installation of cover is described for vehicles with Climatronic.
- Removal and installation of cover for vehicles with Climatic is the same.

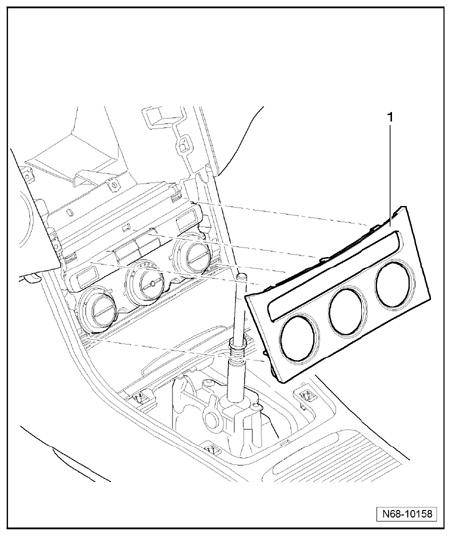

- The adjacent components are only partially shown in the illustration.

Removing
- Remove Infotainment trim.







- Remove trim - 1 - from mountings in instrument panel.







Installing
- Installation is performed in the reverse order of removal.
