General Installation Information For All Windows






Flush Bonded Windows

General Installation Information for All Windows

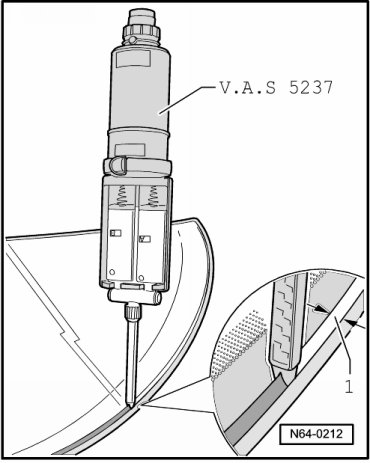

- Apply the adhesive all around circumference at a right angle to window.





CAUTION!
The window must be installed within 10 minutes or the adhesive will not bond well.

Do not apply the adhesive too thick and do not press on the window glass too hard. Since the window glass no longer has sealing lips, it is possible to see the adhesive inside the seam.

• With help of two Suction Cups (V.A.G 1344) install window in window opening, center and press in onto the spacing lip.

• Re-affix any stickers (for example, for airbag).
