Towing Recognition Control Module






Towing Recognition Control Module

• The same procedure is used to remove and install the towing recognition control module (J345) made by Westfalia and Hella. The procedure is only described for one version.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove right side panel trim in luggage compartment

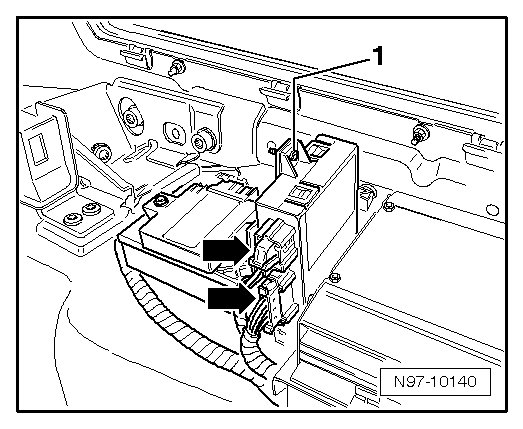

• The number of connectors - arrows - on the towing recognition control module (J345) - 1 - may differ from the illustration depending on vehicle equipment and/or manufacturer.





- Disengage connectors - arrows - and disconnect them from Control Module for towing sensor (J345).

- Remove mounting bolt - 1 - and remove Control Module for towing sensor (J345) upward out of bracket.

Installing

Install in reverse order of removal, noting the following:

• After installing a new Control Module for towing sensor (J345) (only modules from Westfalia), it must be coded --> [ Towing Recognition Control Module, Westfalia, Coding ] Programming and Relearning.
