Power Mirror Control Module: Service and Repair






Center Console Lamps and Switches


Exterior Rearview Mirror Adjustment Module

The module for outside mirror adjustment (depending on equipment) consists of the following components:

• Mirror Adjustment Switch (E43)

• Mirror Selector Switch (E48)

• Switch for outside mirror heating (E231)

• Mirror Folding Switch (E263)

• Mirror Adjusting Switch Light (L78)

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove selector lever cover.

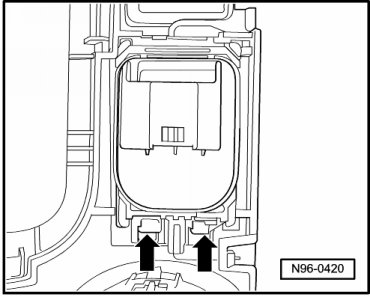

- Disengage retaining tabs - arrows - and remove module for outside mirror adjustment out of cover.





Installing

Install in reverse order of removal.
