Front Blower Regulation Sensor






Front Blower Regulation Sensor

Removing

- Open glove box.

On first repair:

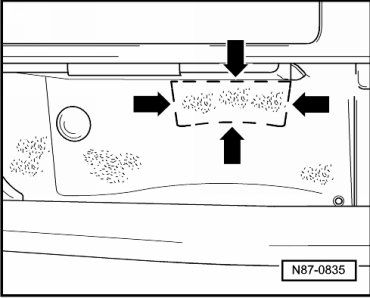

- Cut out pre-stamped area - arrows - with a knife.





• The blade length should not exceed 15 mm, to prevent damage to the cables located behind.

- On second repair, unclip cover

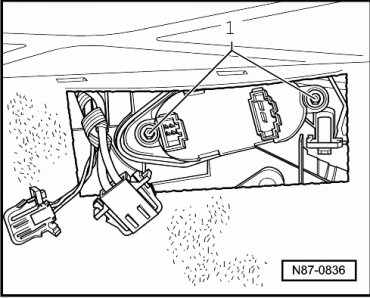

- Disconnect connector.

- Remove bolts - 1 -.





CAUTION!
Contact with a hot exhaust system can cause severe burns.

The Front Blower Regulation Sensor (Bitron) may be hot.

Allow Front Blower Regulation Sensor (Bitron) to cool before removing.

- Remove blower regulation sensor.

Installing

Installation is performed in reverse order of removal, but observe the following during the first repair

- Seal opening in glove compartment with a Door (7L6 820 239)
