Rear Blower Regulation Sensor






Rear Blower Regulation Sensor

Removing

- Remove side trim at left of luggage compartment.





- Disconnect connectors at Rear Blower Regulation Sensor (G463)

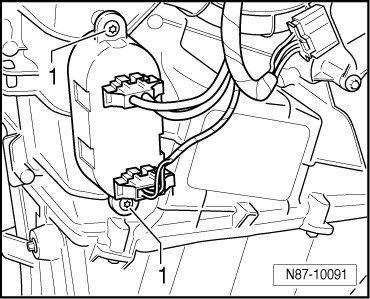

- Remove screws - 1 - and remove Rear Blower Regulation Sensor (G463) from heating and air conditioning unit.

Installing

Install in reverse order.
