Refrigerant Pressure Sensor / Switch: Service and Repair
High Pressure Sensor-G65-, Removing And InstallingRemoving -
Remove air intake duct.
-
Disconnect electrical connection.
-

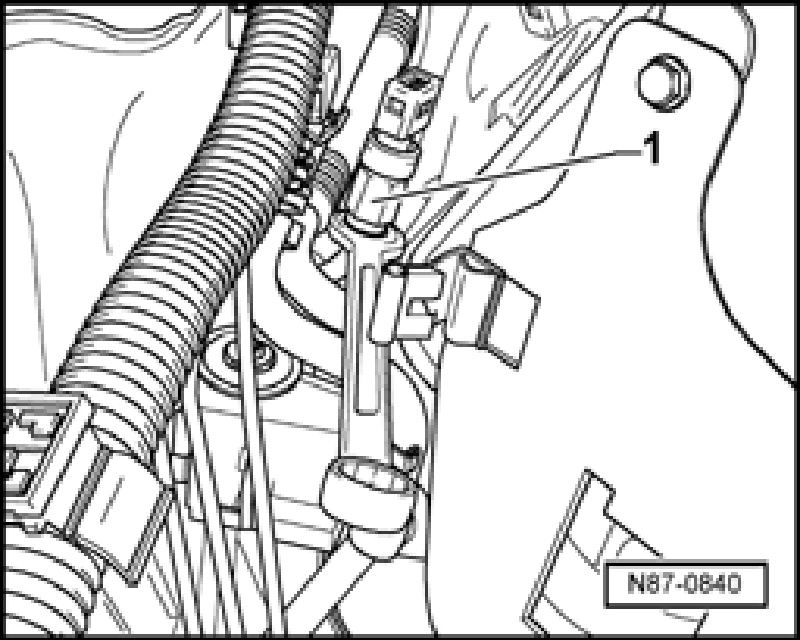

Unscrew sensor -1- from refrigerant line fitting in plenum chamber.
InstallingInstall in reverse order of removal, noting the following:
-
Replace O-ring.
