Oil Pan, Engine

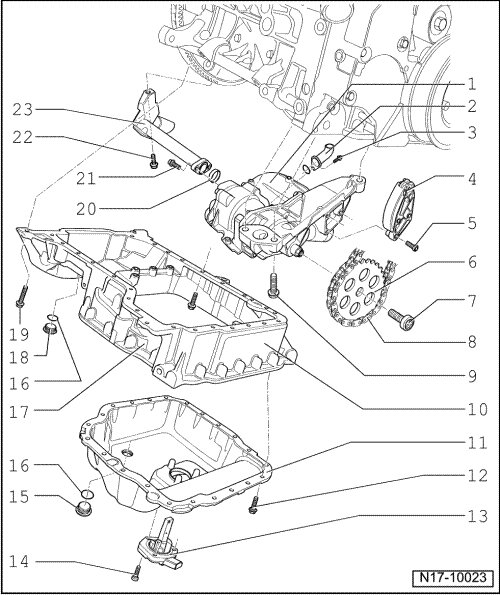

Oil Pan, Assembly Overview
1 Oil pump
2 Pipe connection
3 10 Nm
4 Chain tensioner
5 10 Nm
6 Chain sprocket
7 34 Nm
8 Drive chain
9 30 Nm
10 Oil pan, upper part
11 Oil pan, lower part
12 10 Nm
13 Oil Level Thermal Sensor (G266)
14 10 Nm
15 Oil drain plug, 50 Nm
• For oil pan, lower part
16 Seal
17 15 Nm
18 Oil drain plug, 50 Nm
• For oil pan, upper part
19 22 Nm
20 Seal
21 10 Nm
22 25 Nm
23 Oil intake tube
