Steering
Fastener Tightening Specifications •
1 Always replace

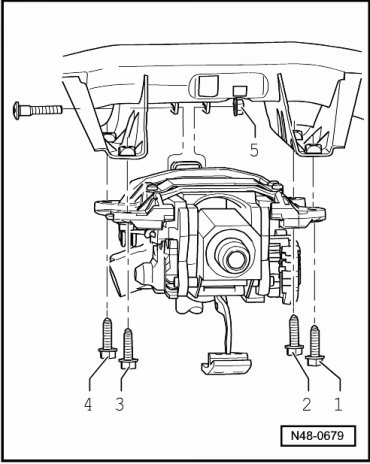

Steering Column Bolt/Nut Tightening Sequence and Specifications -
Tighten bolts -
1 through 4 - in the sequence shown to 20 Nm.
-
Tighten nut -
5 - to 20 Nm.
Power Steering Pump Tightening Specifications, 3.0L Diesel Engine Power Steering Pump Tightening Specifications, 3.2L, 3.6L and 4.2L Engines
