Interior Monitoring Sensor






Interior Monitoring Sensor

Interior Monitoring Sensor (G273) is located in vicinity of roof module in molded headliner.

CAUTION!
When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool (plastic wedge, screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

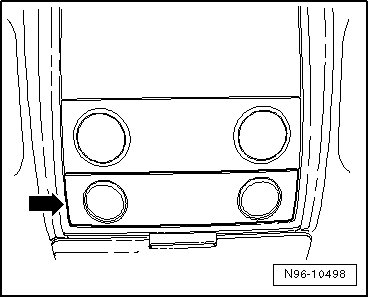

- Carefully pry panel out of console in molded headliner - arrow -.

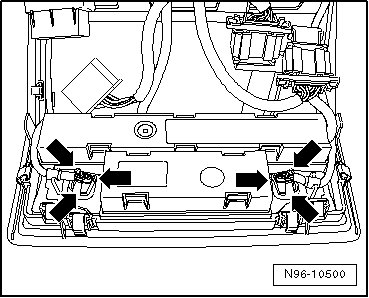

- Disengage retaining tabs - arrows - and remove sensor from panel.





- Remove console in molded headliner.

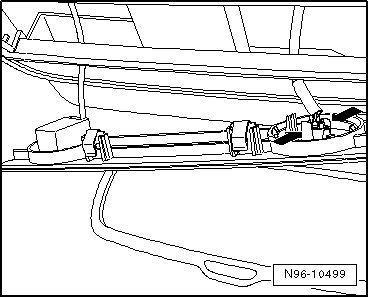

- Disengage retaining tabs - arrows - and remove sensors from panel.

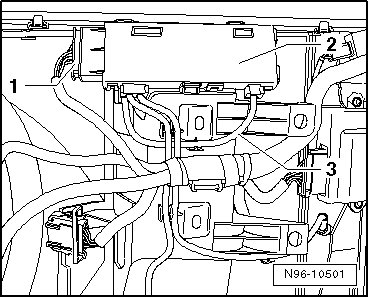

- Disconnect harness connector - 1 - and unclip sensor - 2 - from console.

- Unclip wires - 3 -.





Installing

Install in reverse order of removal.
