Ignition Key Emergency Release






Access/Start Authorization


Ignition Key Emergency Release

If the voltage supply in the vehicle has been interrupted, the ignition key can be removed by actuating the emergency release.

- Turn the ignition key to the "OFF" position.

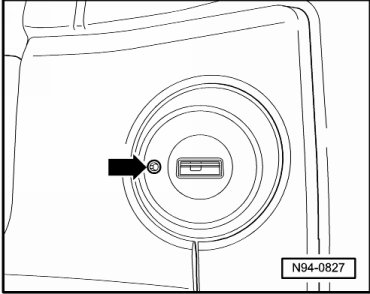

- Depress the push-button - arrow - with a screwdriver and hold.





- The ignition key may now be removed.
