Side Window Assembly Overview






Bolted Windows

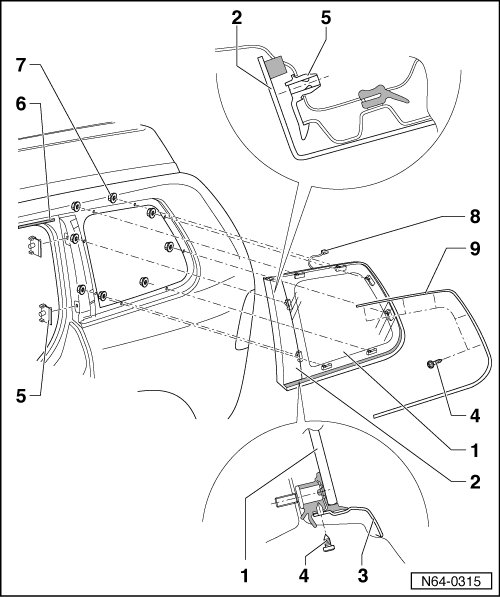

Side Window Assembly Overview





1 Side Window

• To remove side window, the headliner must first be removed.

2 C-pillar trim

• Trim is part of side window and is not to be replaced separately.

3 Trim molding

4 Bolt

• Quantity: 8

5 Retaining clip

6 Drip deflector

7 Flanged hex nut

• Quantity: 8

• 4.5 Nm

• The torque must always be observed.

8 Antenna connector

9 Trim molding

• Secured to the side window with a screw - 4 -
