Smooth Hoses, Repairing
Smooth Hoses, Repairing Smooth hoses with a diameter of 5 x 1 mm or 6 x 1 mm can be repaired with a EPDM repair hose section.
-
Trim and remove damaged sections of hose.
-
Select the corresponding EPDM hose -
2 - and cable ties
-

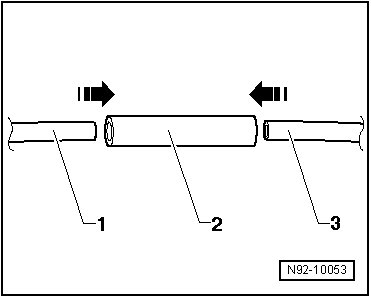

Cut a length of EPDM hose -
2 - so that the smooth tube ends -
1 - and -
3 - can be pushed at least 10 mm into the EPDM hose -
2 -.
-

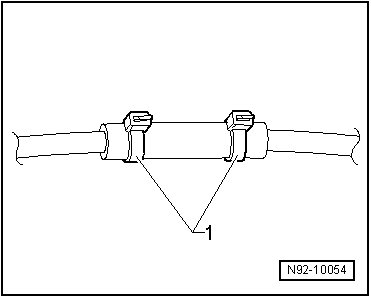

Secure with cable ties as illustrated -
1 -.
