Air Duct: Service and Repair
Fresh Air Intake Removing
-

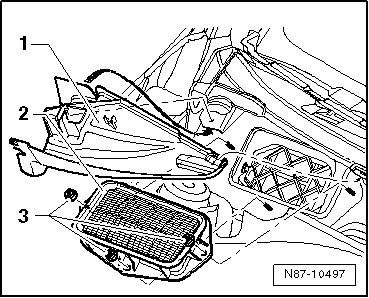

Remove the plenum chamber cover.
-
Remove the cover -
1 -.
-
Only for vehicles with an air quality sensor (G238). Refer to => [ Air Quality Sensor G238 ]
Service and Repair.
-
Remove the nuts -
3 - (2.5 Nm) and air grille -
2 -.
Installing
Install in reverse order of removal.
•
The seal must fit correctly in the air grille.
