Rear Axle Camber, Adjusting

Rear Axle Camber, Adjusting

Special tools, testers and auxiliary items required

• Insert Tool 18 mm (T10179)

- Loosen the nut - A - of the upper track control arm at the subframe.






- Adjust the camber by turning the hex on the eccentric bolt - arrow -.

• The maximum adjustment range is 90° to the left or right of the center position.

- Tighten the nut - A -.






- To do so, use the insert tool 18 mm (T10179).






When using the insert tool 18 mm (T10179) , tighten the nut to 80 Nm.

- After tightening the nut - A -, (Fig. N44-10035 ), check the camber value once again.

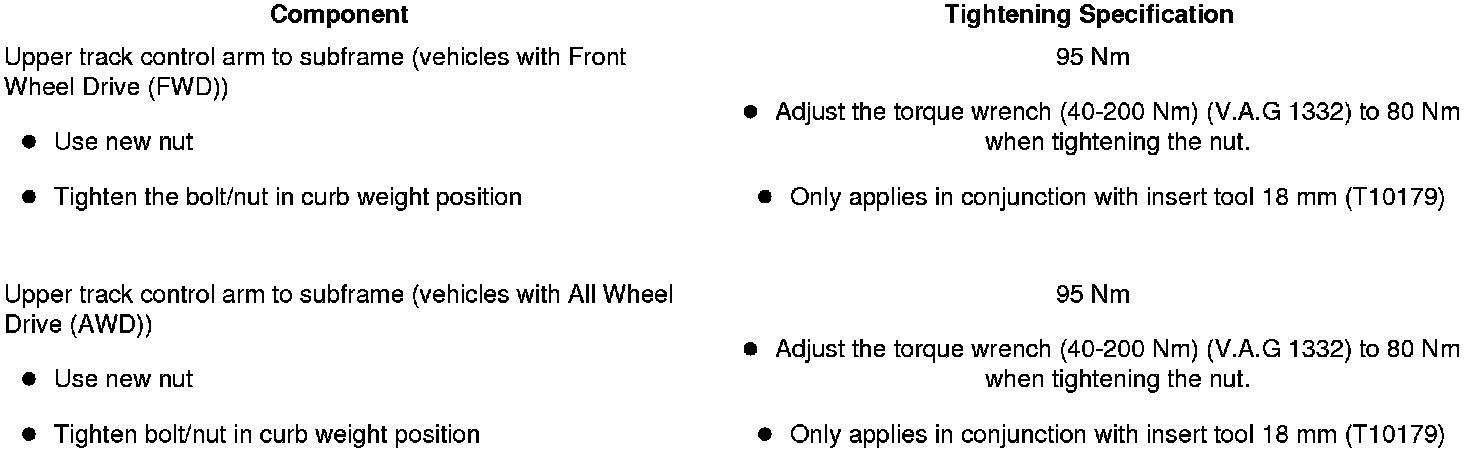

Tightening Specifications
