Final Drive, Differential (09M,09MA Automatic Transmission)

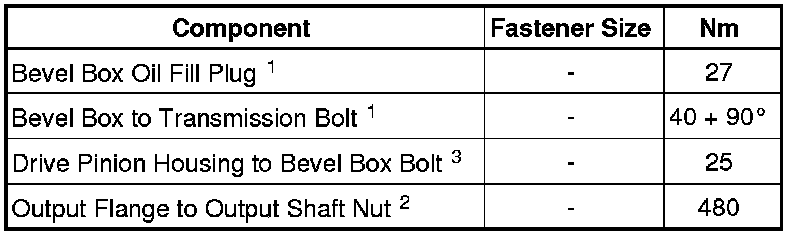

Fastener Tightening Specifications •
1 Always replace
•
2 Install using liquid locking fluid (D 000 600 A2)
•
3 Tighten in a diagonal sequence

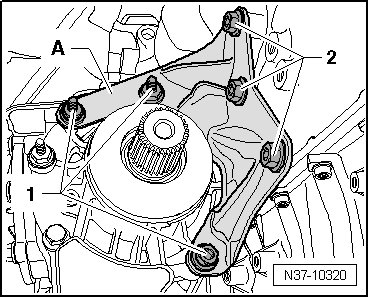

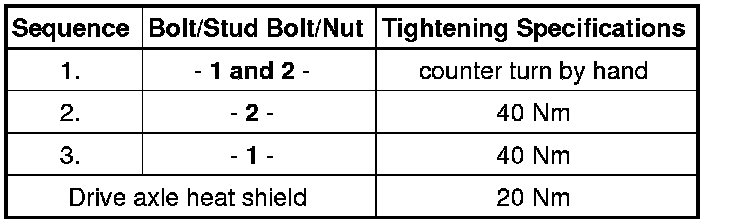

Bevel Box to Transmission Bracket Bolt/Stud Bolt/Nut Tightening Sequence and Specification
