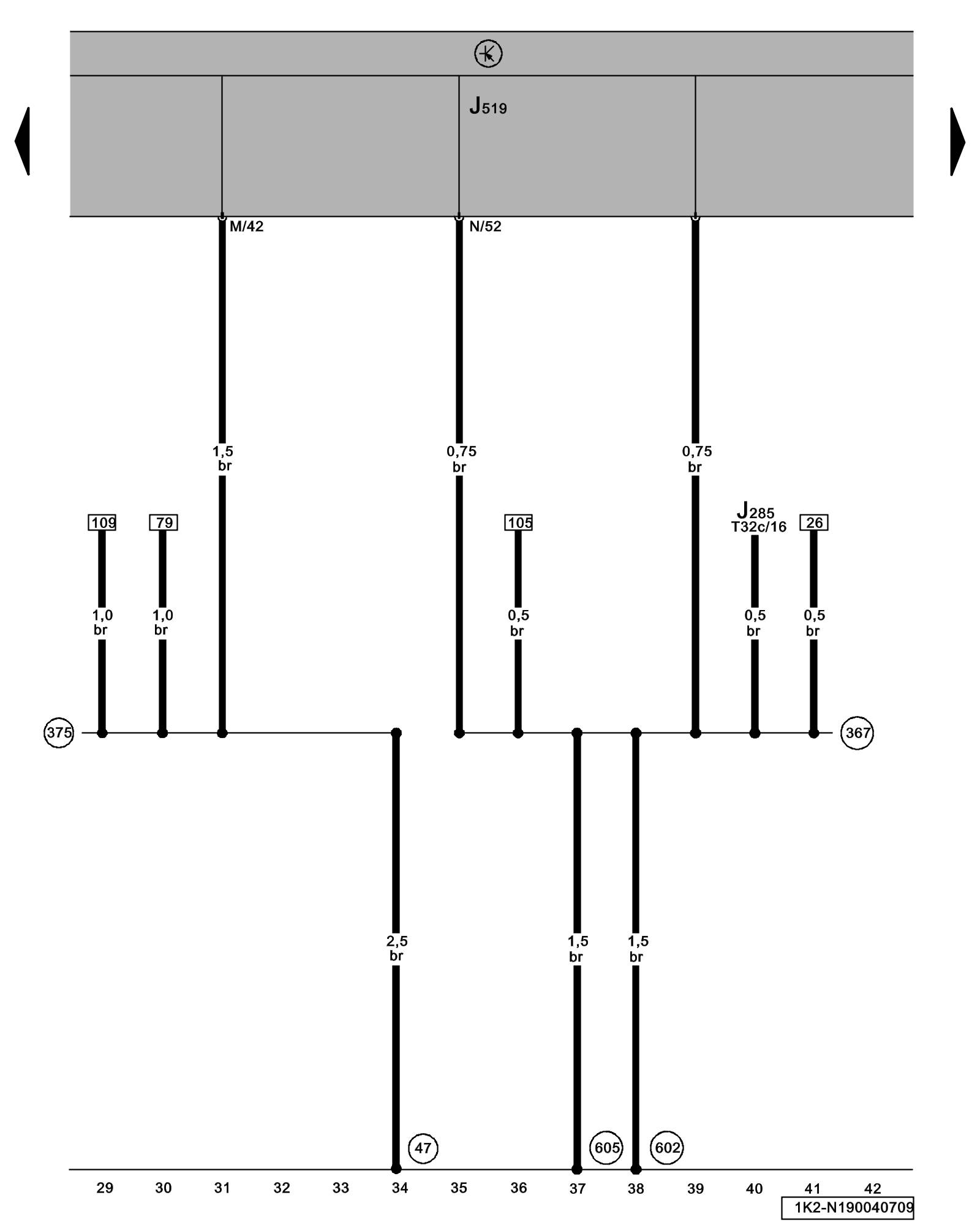

Diagram 190/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Locations Locations

J519 - Vehicle Electrical System Control Module Locations Locations

T32c - 32-Pin Connector (J285)

(47) - Ground Connection (in front right footwell)

(367) - Ground Connection 2 (in main wiring harness)

(375) - Ground Connection 10 (in main wiring harness)

(602) - Ground Connection (in front left footwell)

(605) - Ground Connection (on upper steering column)
