Charging System: Locations

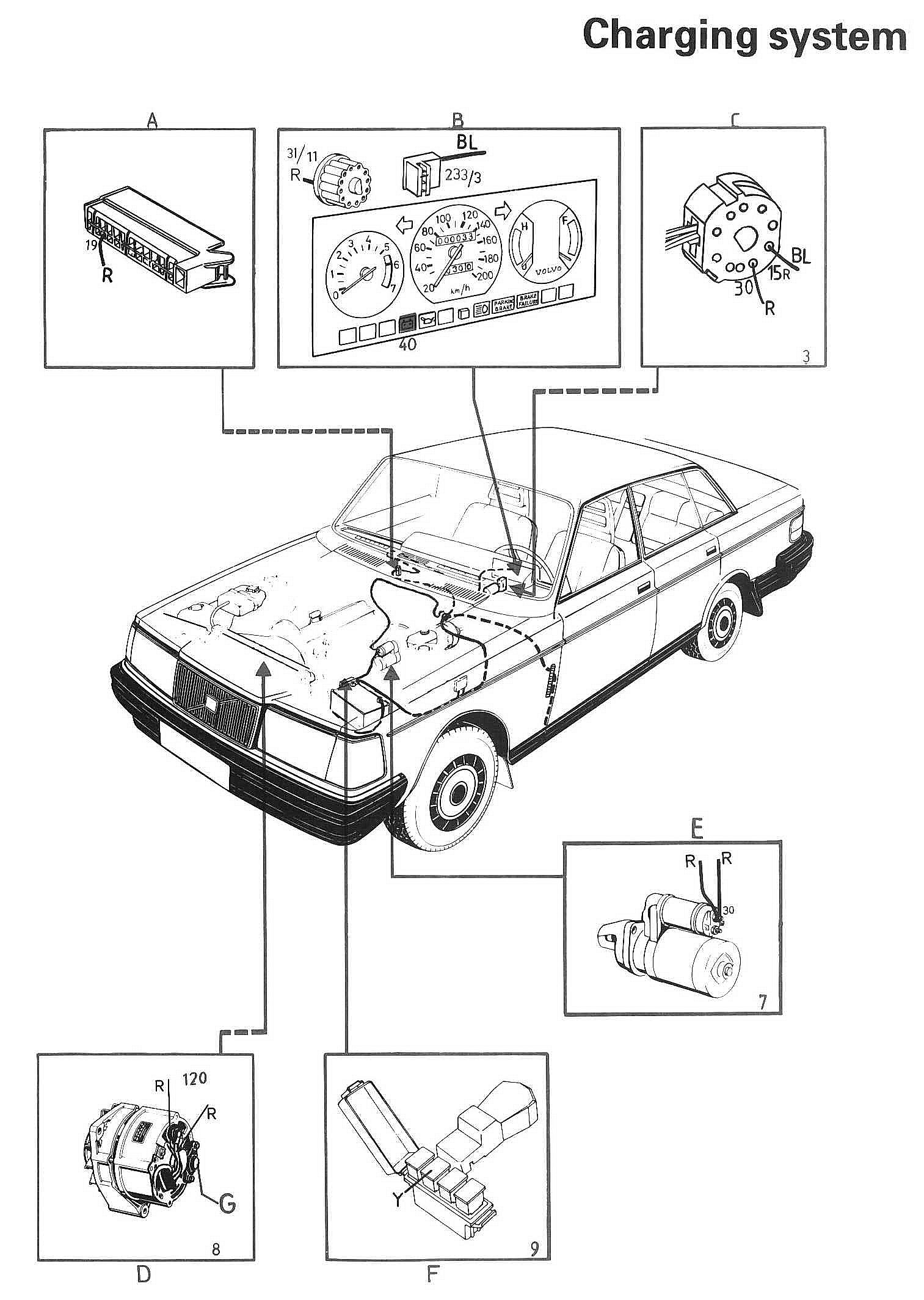

Component / Connector Views:

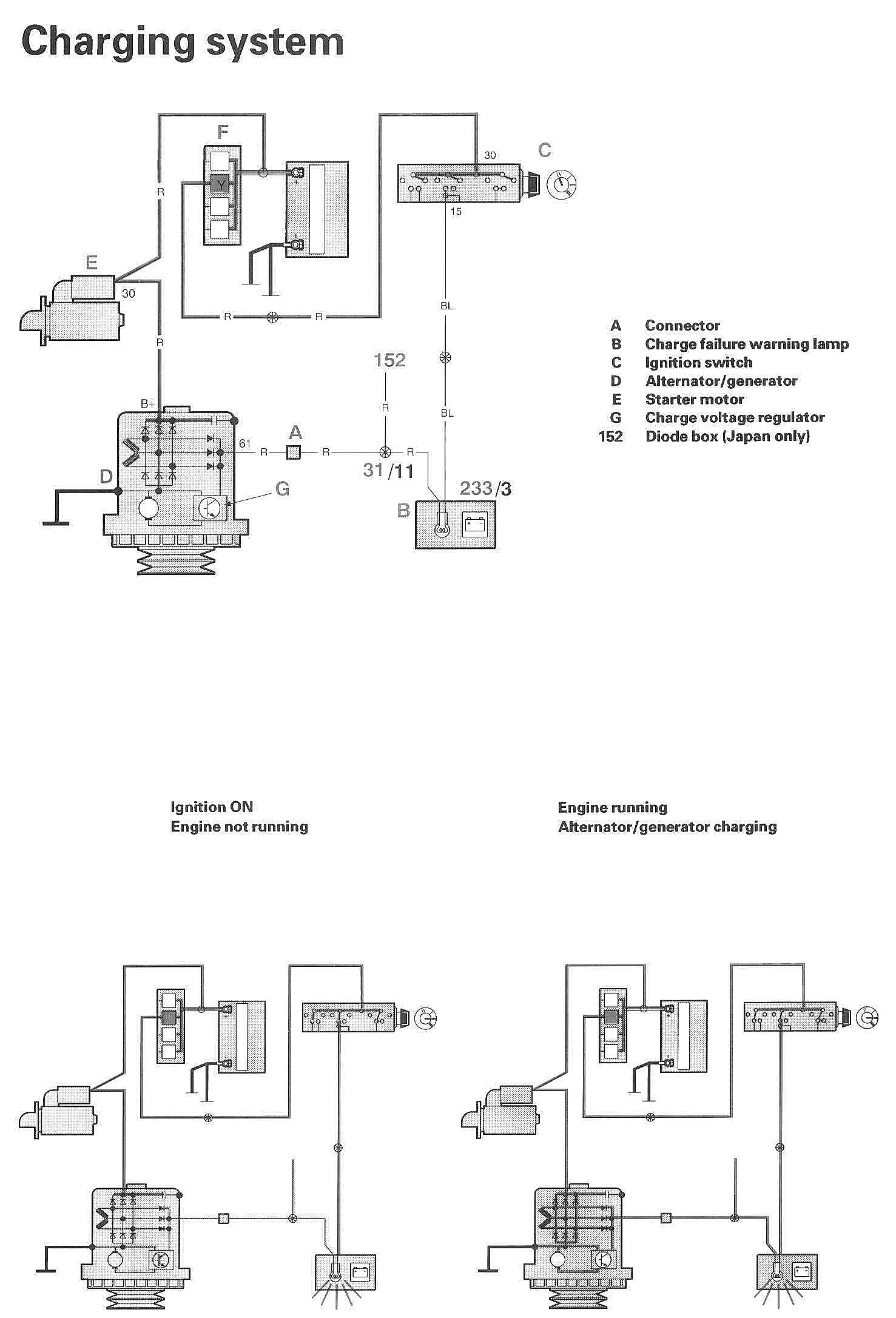

Wiring Diagrams:

LEGEND
A Connector
B Charge failure warning lamp
C Ignition switch
D Alternator / generator
E Starter motor
G Charge voltage regulator 152 Diode box (Japan only)
