NB. Signal Description Regina
NB. Signal description Regina
Important!
All the values which are shown are between the connector in column 1 and #5; not, the correct parameters are stated within brackets. Make sure therefore that this chassis connection is properly attached to the battery's negative terminal before measurements are undertaken.
Values at idle speed are for a hot, unloaded engine.
Definitions:

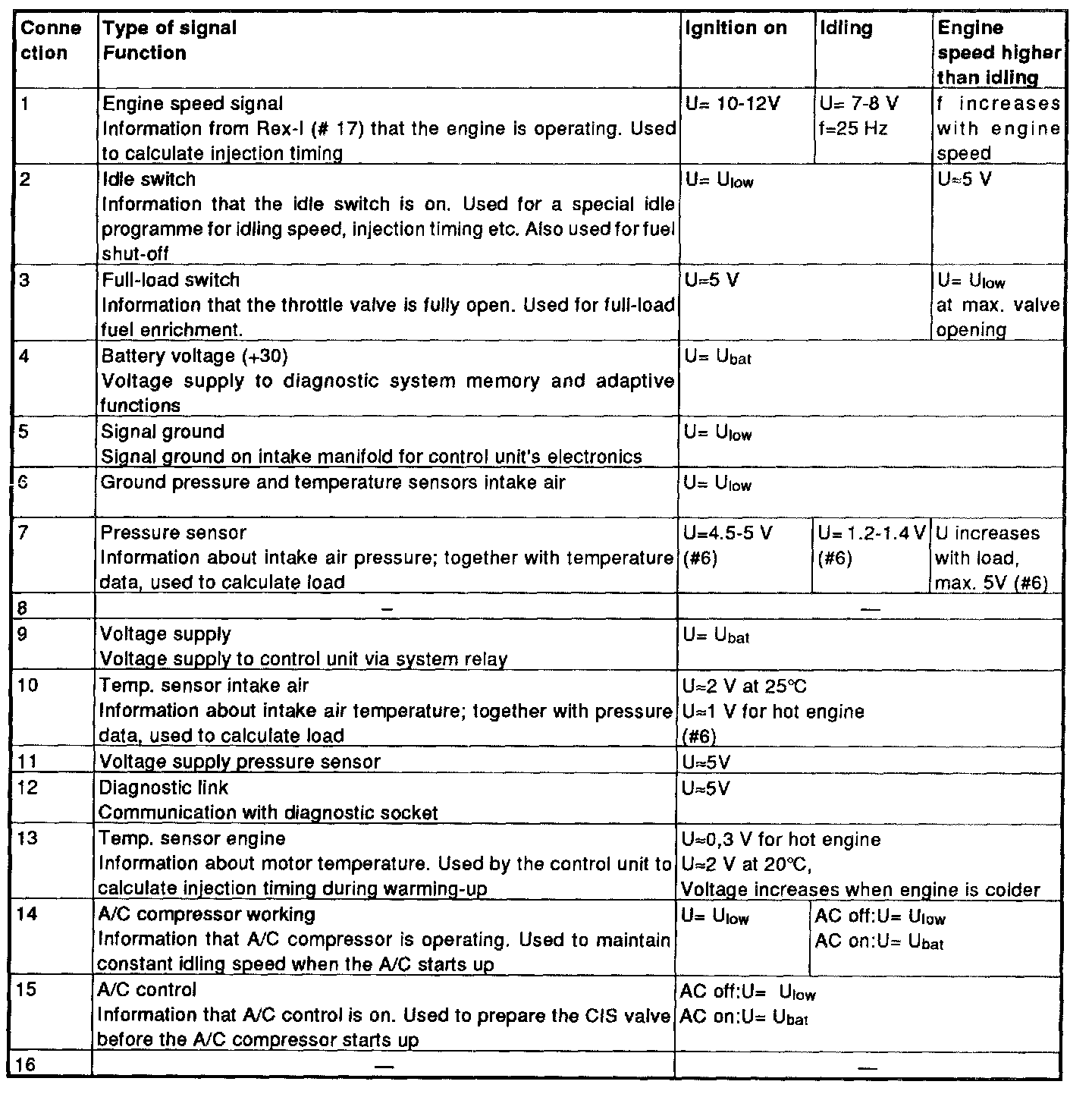

Connections 1-16 (Part 1):

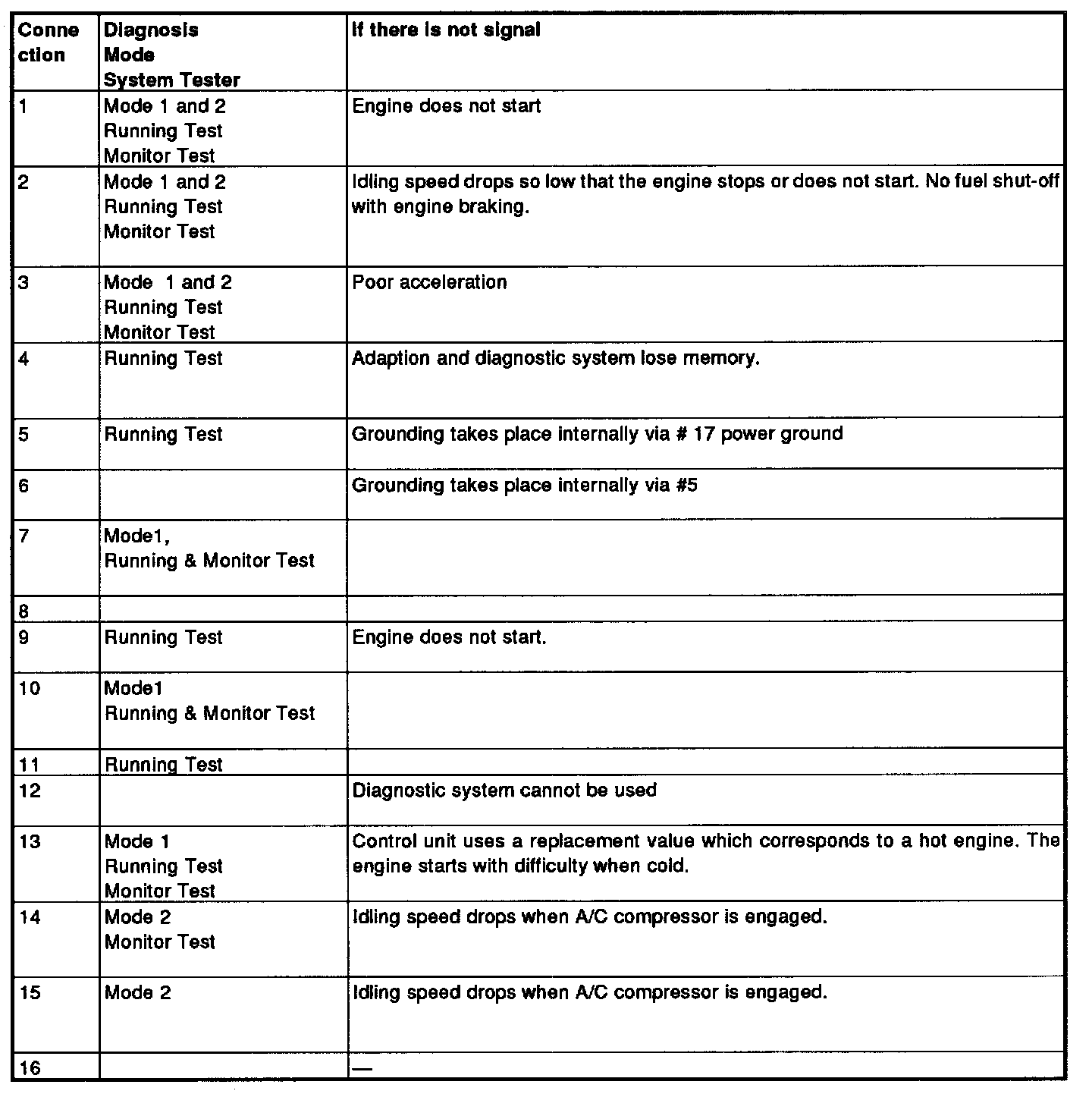

Connections 1-16 (Part 2):

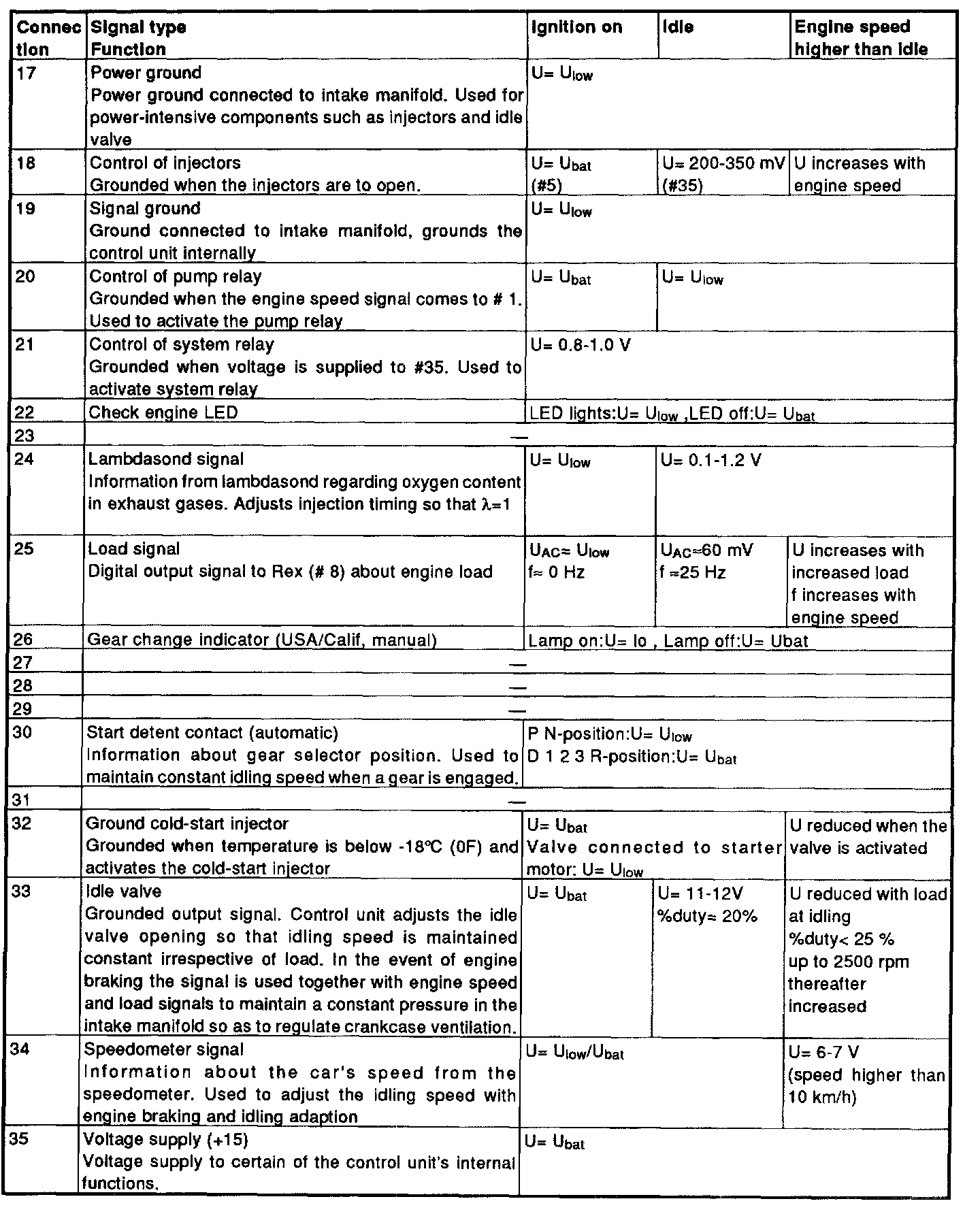

Connections 17-35 (Part 1):

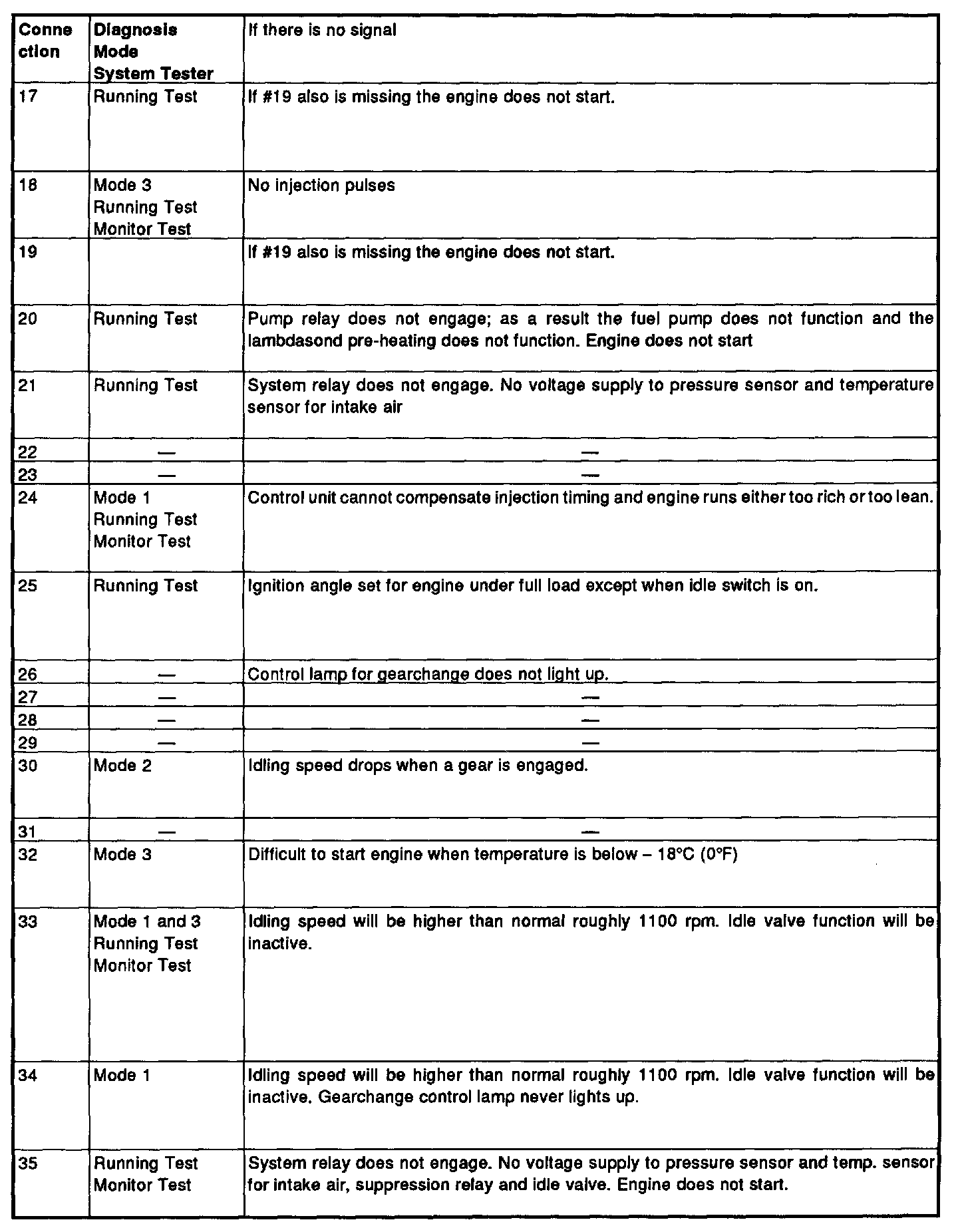

Connections 17-35 (Part 2):
