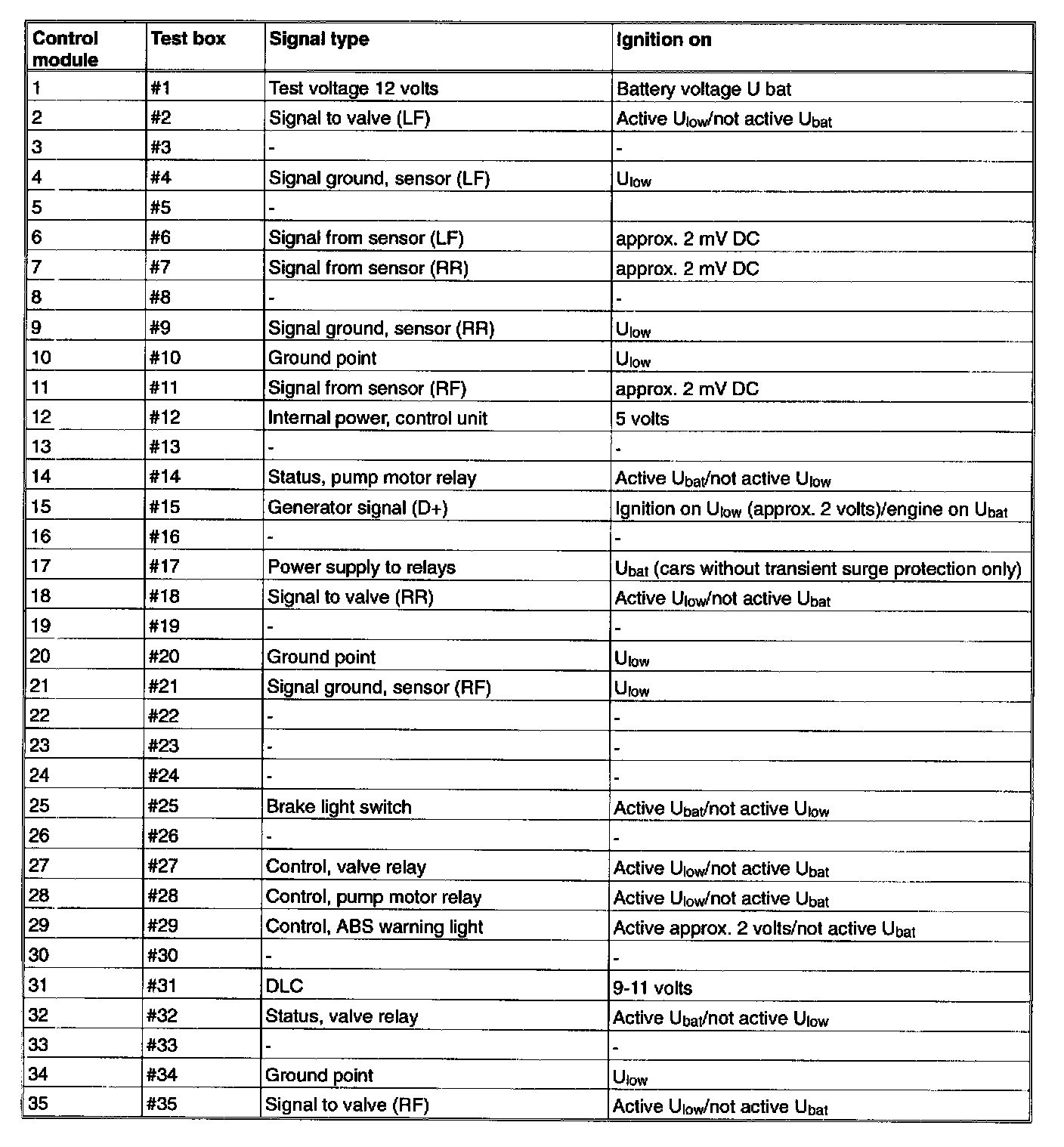

Signal Table & Test Points, Control Unit - ABS 35-Pin Connector

All readings are relative to 0 volts, i.e. ground point in car.
0 volts = Ulow, 12 volts = Ubat

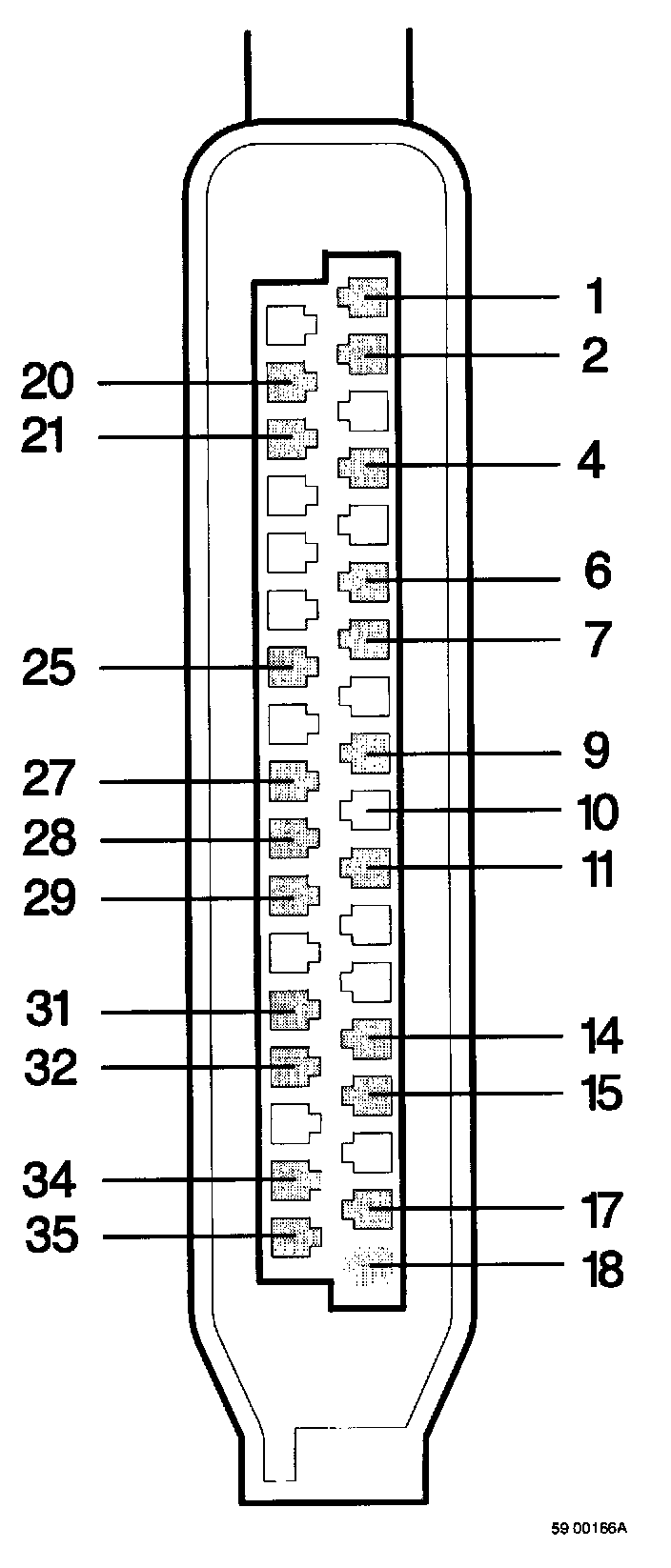

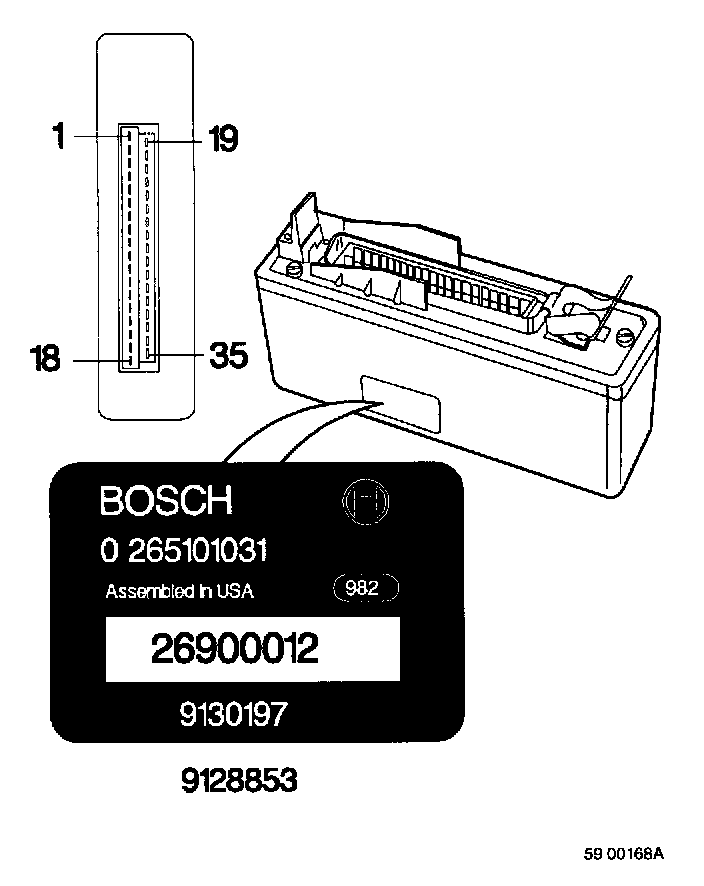

Input/output signals, connector (35-pin) Pin connections
