Replacing Glass Breakage Control Module






Replacing glass breakage control module

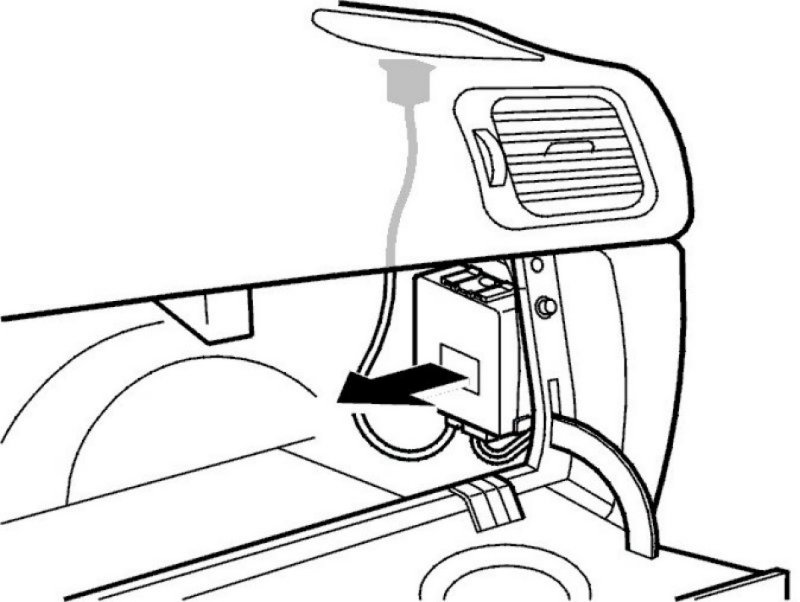

Removing glass breakage control module

Location Of Components, Alarm Components (Glass Breakage Sensor):





Remove:
- the glove compartment according to Panel and SRS passenger airbag module Panel and SRS Passenger Airbag Module
- the glass breakage control module from the mounting. Pull the glass breakage control module outward.




- Disconnect the connectors.

Installing glass breakage control module
In reverse order.
