Access Cover: Service and Repair

Replacing the cover on top of the engine

Special tools:
999 5702 Socket 999 5702 Socket

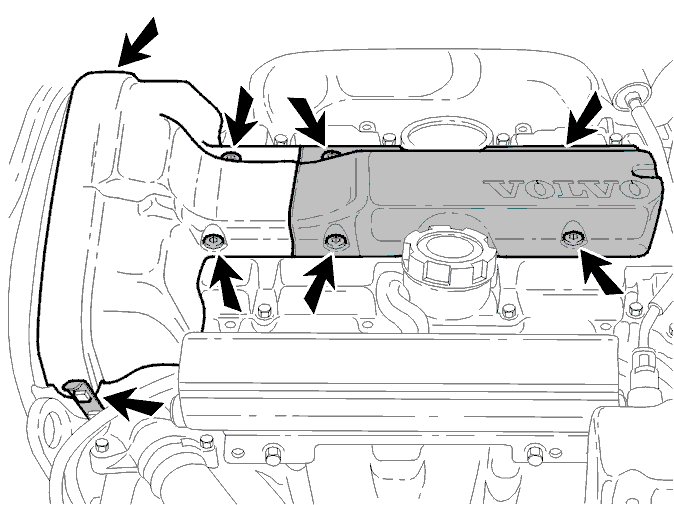

Removing the cover on top of the engine

- Remove the screws from the rear of the cover
- Remove the two screws from the timing gear side
- Undo the clips on the timing gear side. Remove the cover(s).

Installing the cover on top of the engine

- Position the cover(s)
- Secure the clips on the timing gear side
- Install the screws. Tighten to 10 Nm.
