Cruise Control Servo: Service and Repair

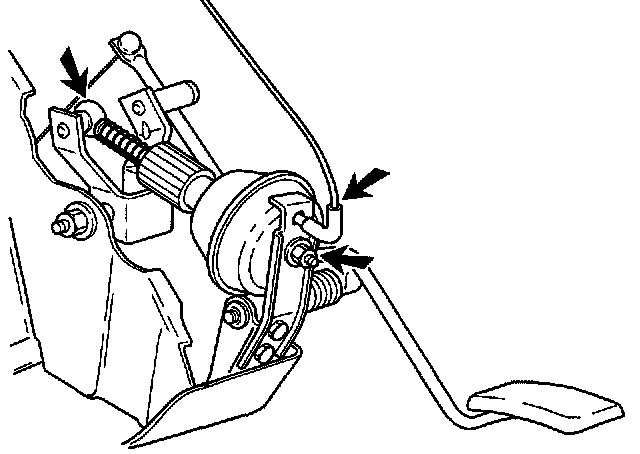

Replacement of vacuum servo

- Remove dashboard panel.
- Remove vacuum hose.
- Remove nut of vacuum servo.
- Remove vacuum servo from support.
- Remove balljoint actuating rod using an 8/9 mm wrench.
