Passenger Compartment

Passenger compartment

Location Of Components, Passenger Compartment (Cruise Control Switch):

- Cruise control switch

Location Of Components, Passenger Compartment (Vacuum Valves, Stop Lamp Switch, Vacuum Servo):

- A Vacuum valves
- B Stop (brake) lamp switch
- C Vacuum servo

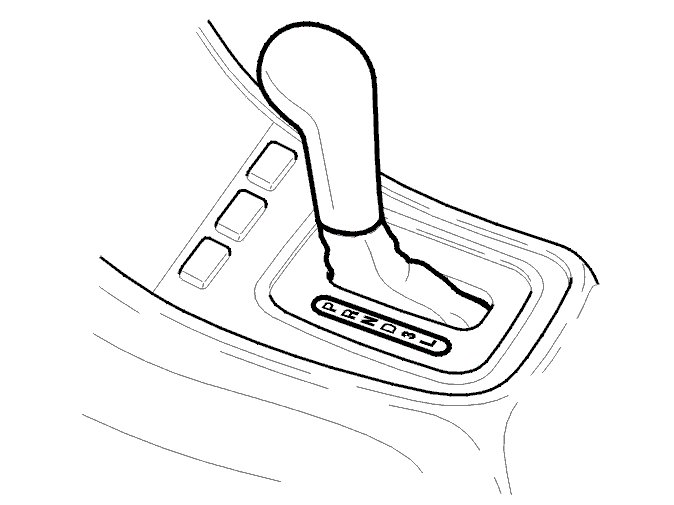

Location Of Components, Passenger Compartment (Park / Neutral Position (PNP) Switch, Automatic Transmissions):

- Park / neutral position (PNP) switch (automatic transmissions)

Location Of Components, Passenger Compartment (Control Module):

- Control module

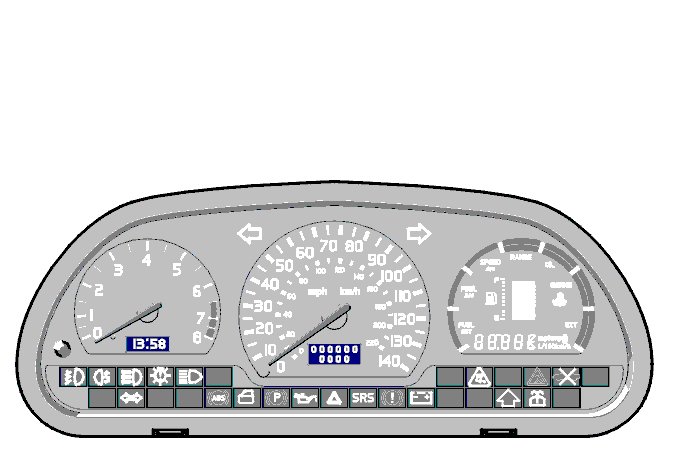

Location Of Components, Passenger Compartment (Speedometer):

- Speedometer
