Checking For an Open-Circuit - I

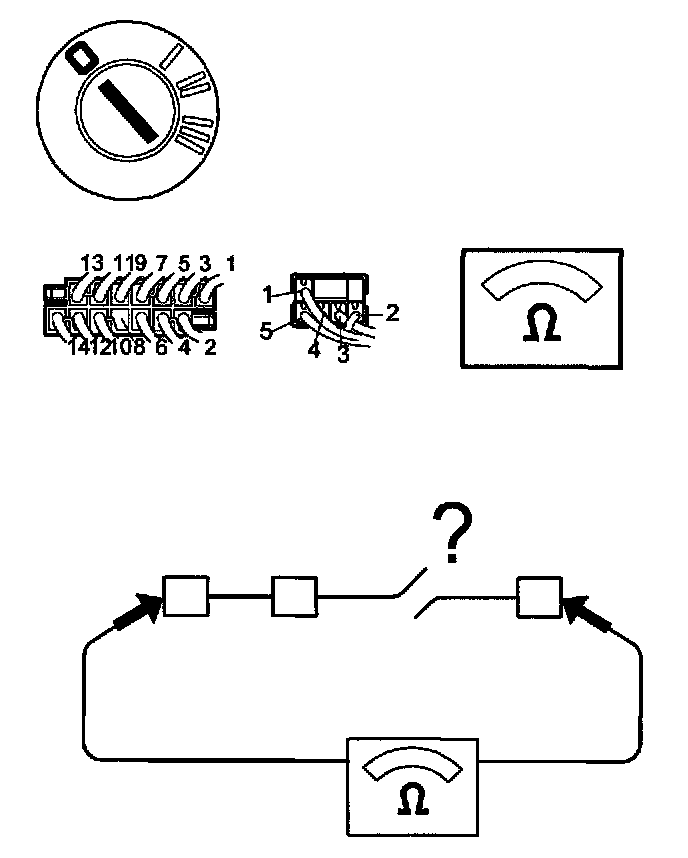

Checking For An Open-circuit







- Ignition off.
- Check the cable between selector switch connector terminal 5 and control module connector terminal 4 for a open-circuit Checking Wiring and Terminals - Permanent Faults


After performing this procedure Verification
