Condenser Fan, Assembly






Condenser fan, assembly

Condenser fan assembly, replacement

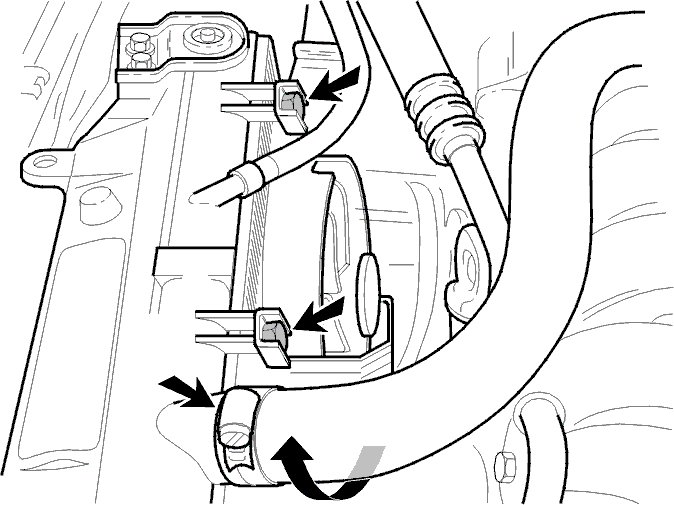

Removal




- Disconnect the connector
- Remove the two upper bolts
- Slacken off the lower bolt a few turns
- Turn the clamp for the engine coolant hose if necessary
- Twist out the unit from its position under the engine coolant hose and lift it out.

Installation
- Install in reverse order.

Note! Check that the slit hole is exactly under the lower bolt.

Pull out the bolts with a tightening torque of: 8 Nm.
