Control Panel (MCC)
Control panel (MCC)Removing control panel -
Pull the knobs out from the control panel. Use a small screwdriver).
-
Remove the front panel: Insert fingers in the opening. Pull carefully.
-
Disconnect the cables.
-

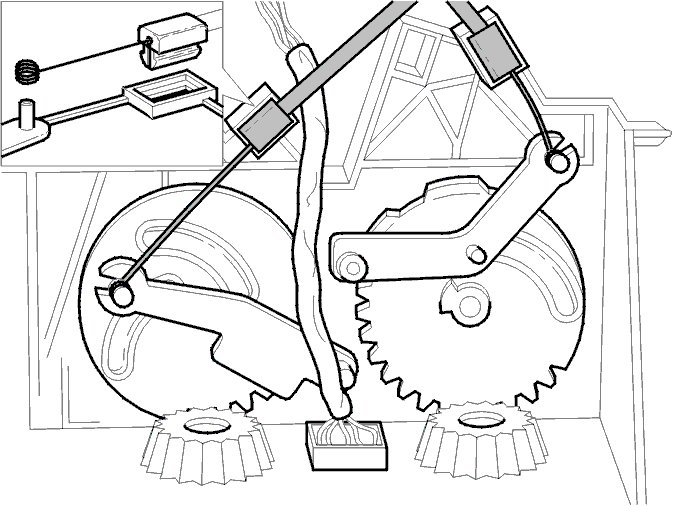

Press out the locking. Disconnect the inner cables.
Installing the control panelInstall:In reverse order.
Adjustment, see Adjusting control cables (MCC)
Adjustments.
