Signal Description

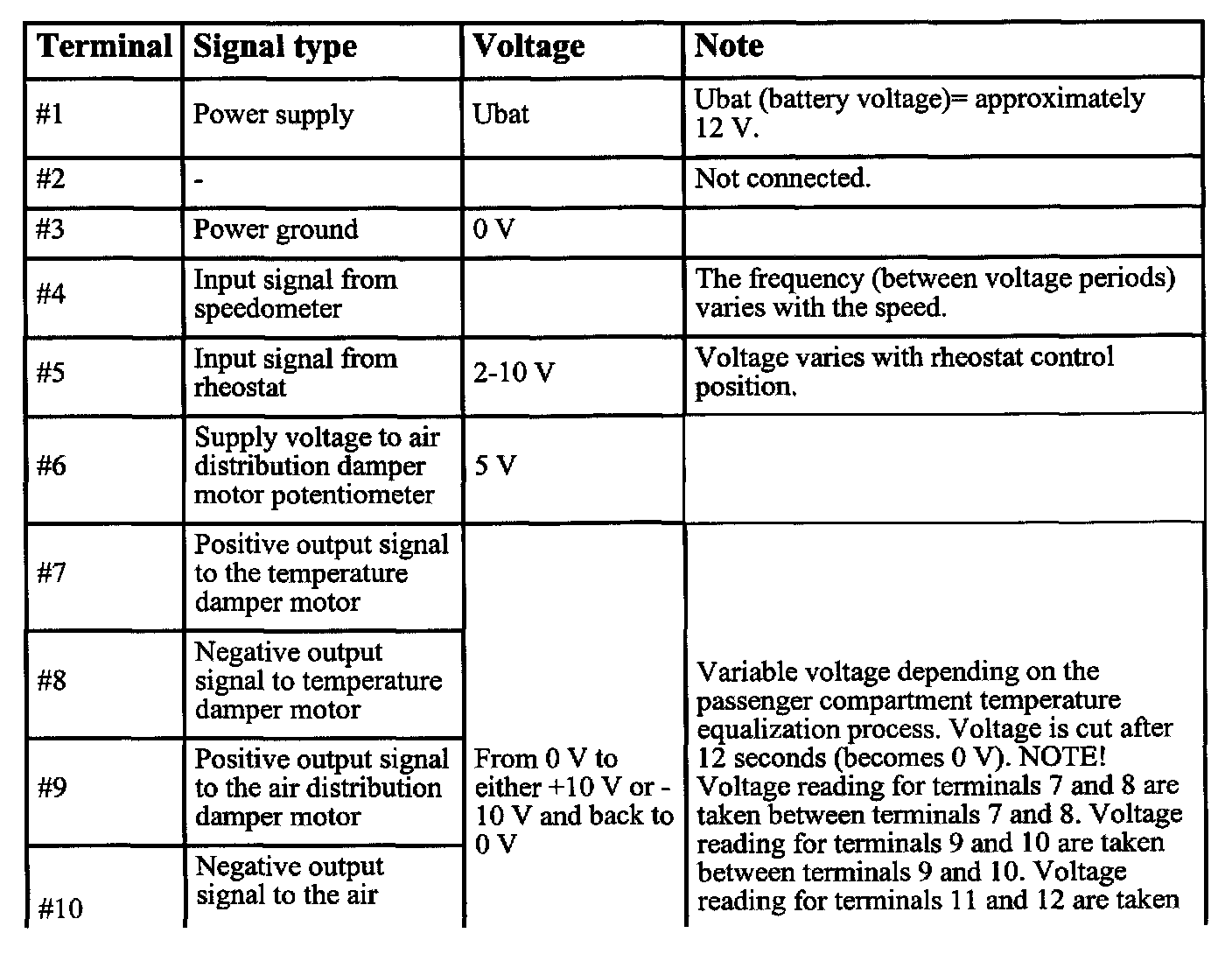

Signal Description All values listed below should be measured between the respective terminal in column 1 ( Terminal ) and ground unless stated otherwise in column 4 (Other).

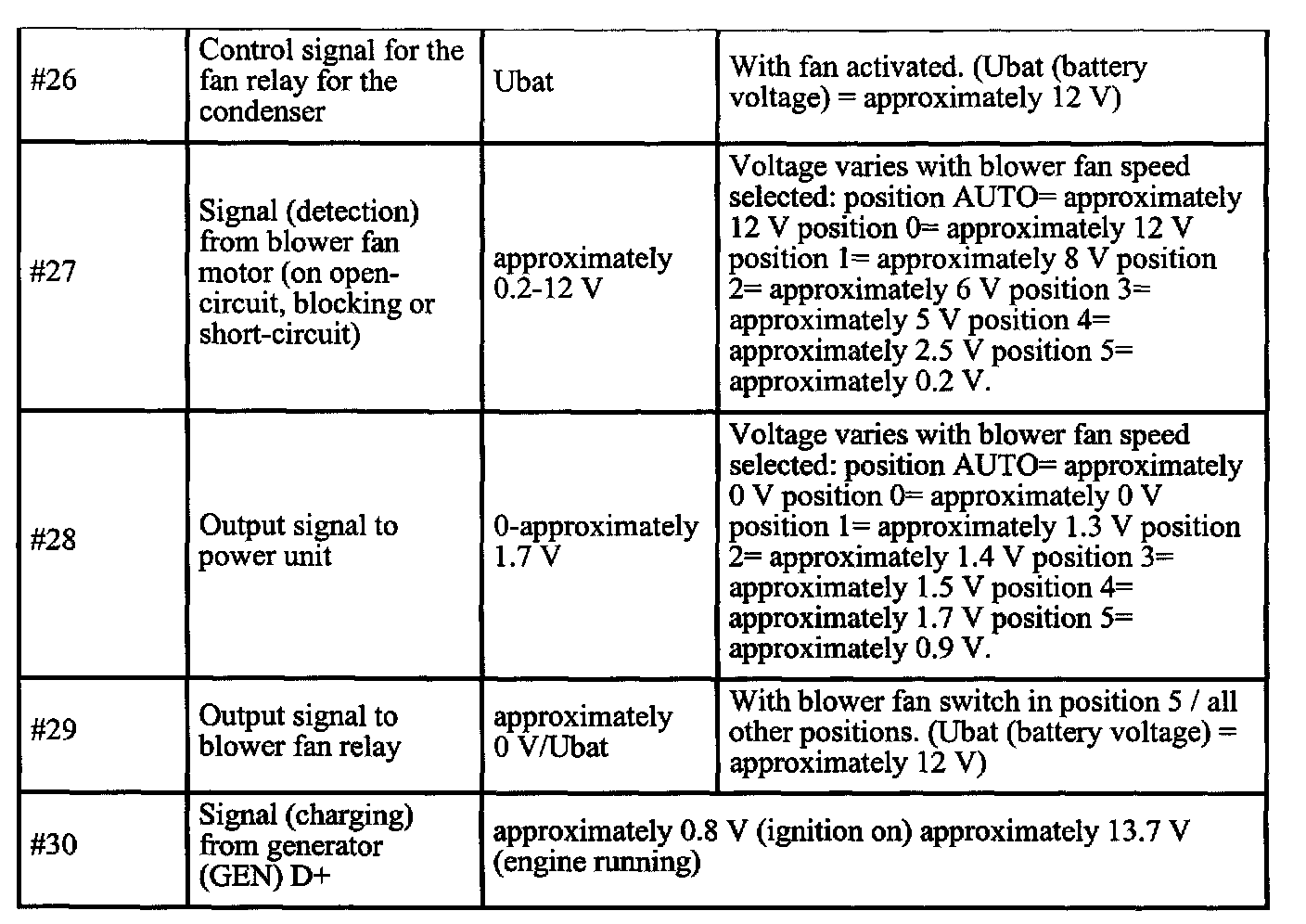

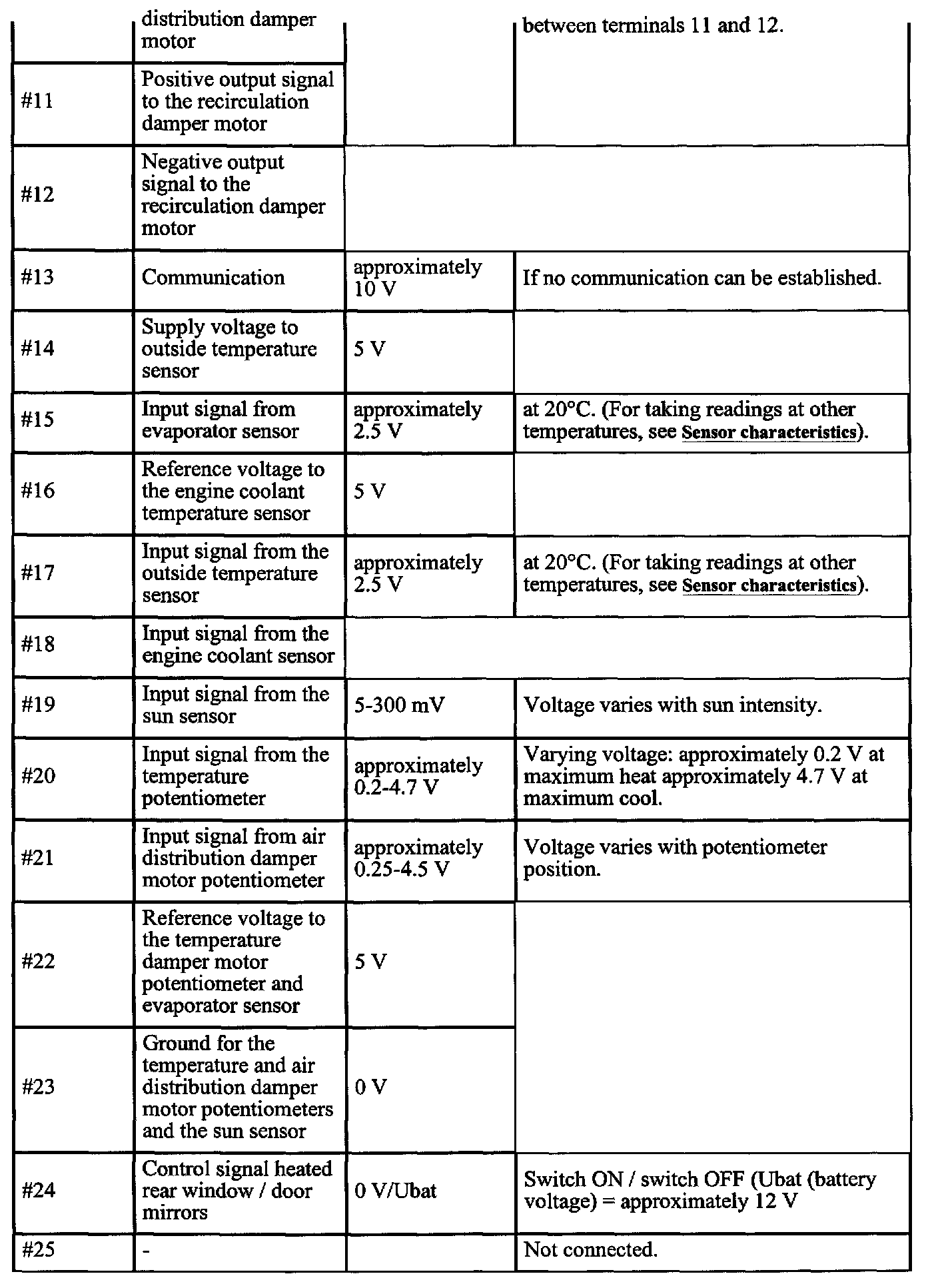

ECC control module connector #1 - #3O, correspond to terminals #1-#30 on the breakout box.
NOTE: It is important to connect the breakout box and check ground terminals before reading off.
Part 1:
Part 2:
Part 3:
