Location Of Components






ECC system

Passenger compartment




- 1 Integrated relay / fusebox 11/B
- 2 ECC control module / control panel / passenger compartment temperature sensor
- 3 Sun sensor
- 4 Relay box 15/14

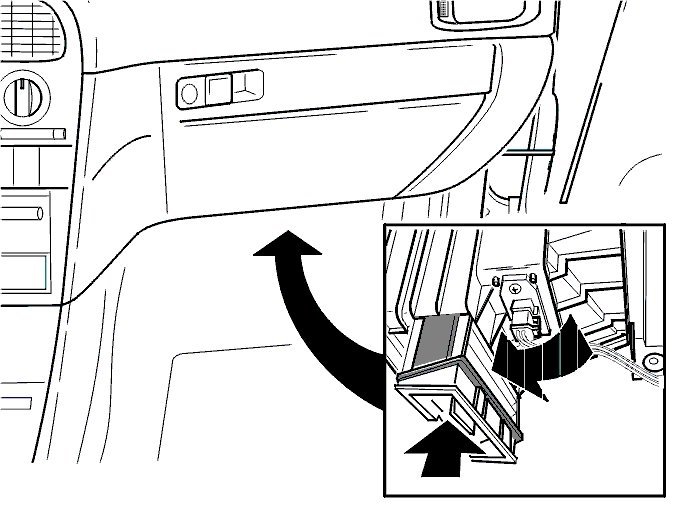

Data Link Connector (DLC)

Location of Components DSA, Data Link Connector DLC:




On left of center console (Right-hand drive cars on right of center console):

Engine compartment




- 1 Integrated relay / fusebox 11/A
- 2 Pressure switch
- 3 Receiver / Drier
- 4 Condenser
- 5 Condenser fan
- 6 Compressor

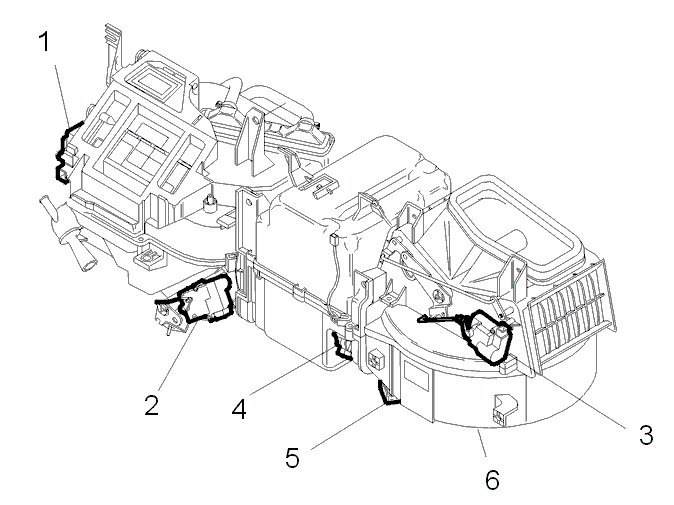

Climate control unit




- 1 Air distribution damper motor
- 2 Temperature damper motor
- 3 Recirculation damper motor
- 4 Blower fan power unit
- 5 Blower fan relay
- 6 Blower fan

Intermediate section




- 1 Evaporator temperature sensor
- 2 Engine coolant temperature sensor
- 3 Outside temperature sensor
- 4 Evaporator

Pollen filter




- Pollen filter
