Outside Pressure Sensor
Outside pressure sensorReplacing the outside temperature sensorRemoval -
Remove the dashboard. See Dashboard
Dashboard -
Remove the heater matrix.

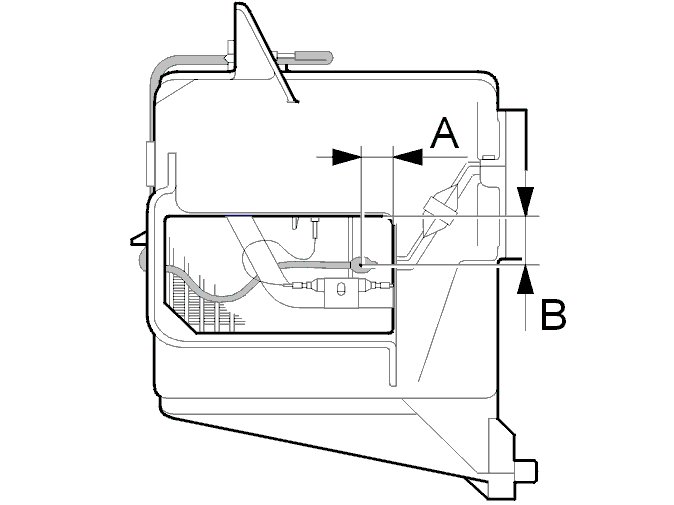

Hint: The temperature sensor is secured with a clip on the evaporator cooler (fan motor side).
A: 60 mm.
B: 25 mm.
Installation -
In reverse order.
