Toe In Control Link Replacement

Caution The toe in control link suspension rubbers cannot be replaced. In the event of wear, replaced the entire toe in control link.

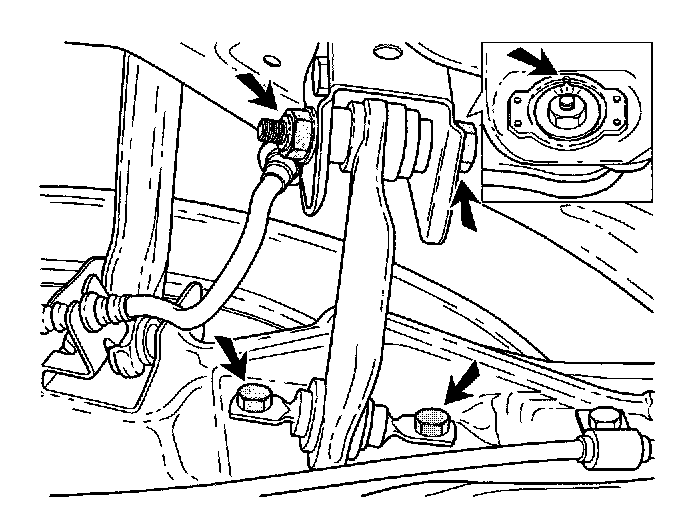

Remove toe in control link



- Mark the position of the adjusting bolt.
Remove:
- the two bolts on the trailing arm
- the adjusting bolt on the body and remove the toe in control link.

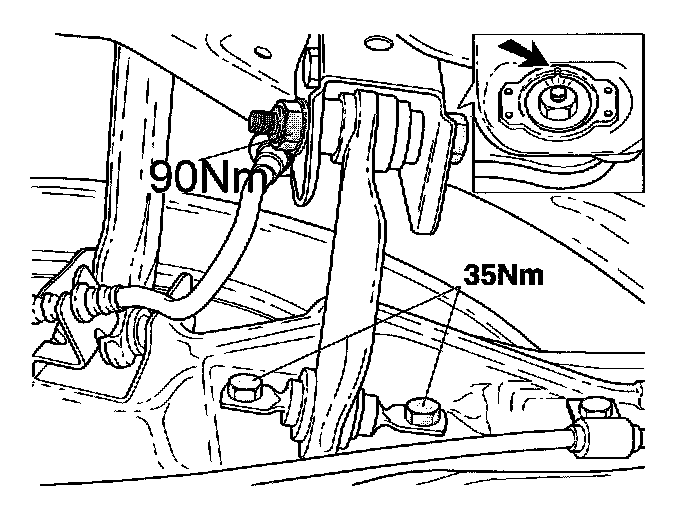

Install toe in control link



- Install the toe in control link on the trailing arm. Tighten to 35 Nm.
- Support the toe in control link and install the bolt on the body side.
- Install the adjusting bolt in the old position Remove the support and push the car up an down a few times.
- Tighten the adjusting bolt to 90 Nm.

Check/adjust wheel alignment
- See operation Checking and adjusting the wheel alignment.
