Lubrication Points

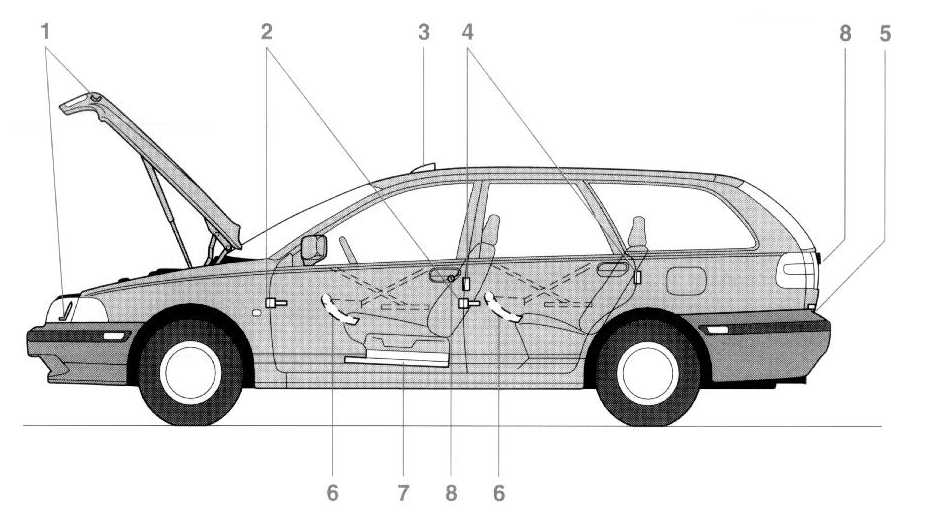

Lubrication Points






1 Hood lock and latch [Oil]
2 Door stop and hinges [Oil]
3 Sun roof wind deflector (visible when sun roof is open) [Low temperature grease]
4 Door lock catch plate [Oil]
5 Trunk/tailgate lid lock [Low temperature grease]
6 Window winder (on inside of door) [Oil, grease, low temperature grease]
7 Front seat side rail and latch [Oil]
8 Door locks [Volvo teflon lock spray]

To avoid rattles and unnecessary wear the body should he lubricated at regular service intervals. This should be done by an authorized Volvo retailer.
