Absolute Pressure Sensor: Service and Repair
Remove fuel rail cover -
Remove cover throttle body
-
Pull off fuel rail cover.
Remove MAP sensor -
Undo the connector
-

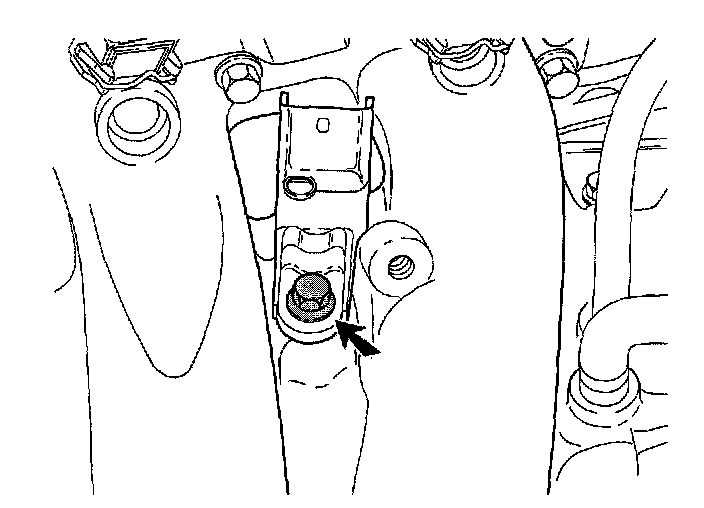

Remove the bolt and take MAP sensor out.
Install MAP sensor -
Replace a new sealing ring (O-ring)
-

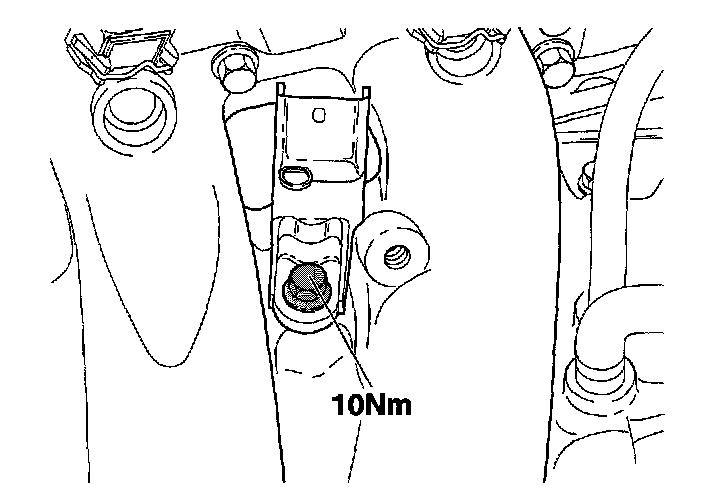

Place sensor and tighten till
10 Nm -
Fit the connector.
Install fuel rail cover -
Place cover and press on
-
Fit throttle body cover.
