Procedures

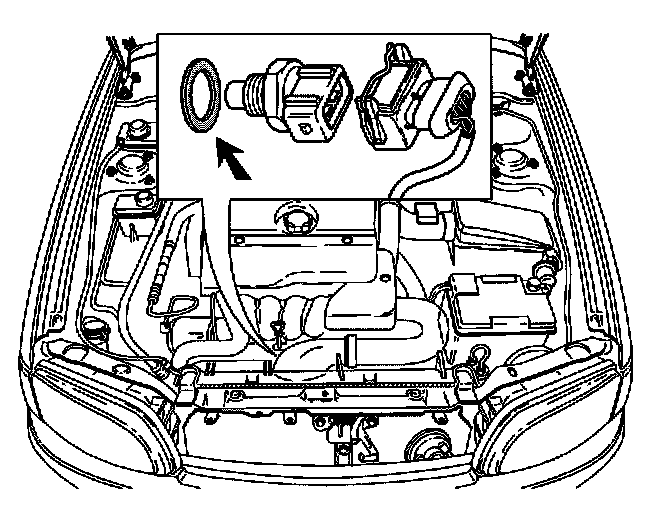

Removing the temperature sensor -
Remove the front engine cover.
-
Disconnect the connector.
-
Remove the temperature sensor.
Installing the temperature sensor -
Use a new sealing ring.
-
Install the temperature sensor. Tighten the temperature sensor to
25 Nm. -
Reconnect the connector.
-
Reinstall the front engine cover.
