Checking Oil Pressure
Checking Oil Pressure

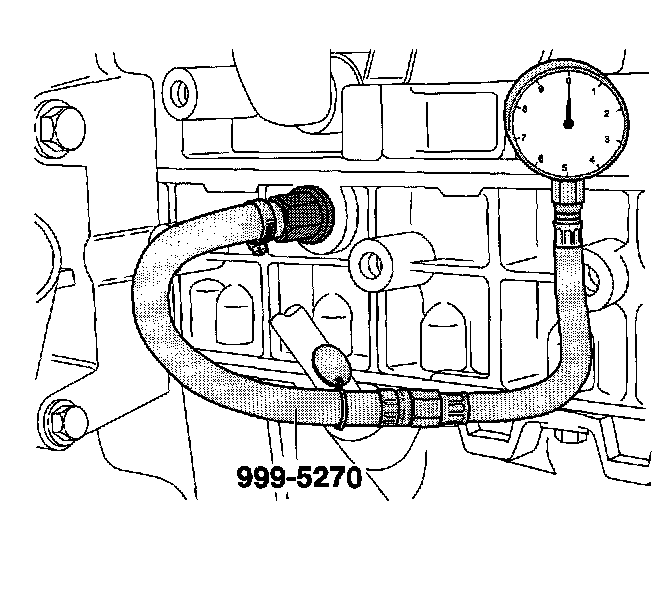

Use oil pressure gauge kit 999 5270.
Adapter 999 5273, hose 999 5272 and gauge 999 5271.
Connect these items to the hole on the cylinder block for the oil pressure sensor.
Start the engine. Read off the oil pressure at different engine speeds (RPM).
Oil Pressure At RPM:
Minimum oil pressure table
Note: The relief valve begins to open at 0.5 MPa.
Remove the tools.
Use a new gasket when installing the oil pressure sensor.
Tighten to 25 Nm.
