Procedures
Remove the cover from the timing gear

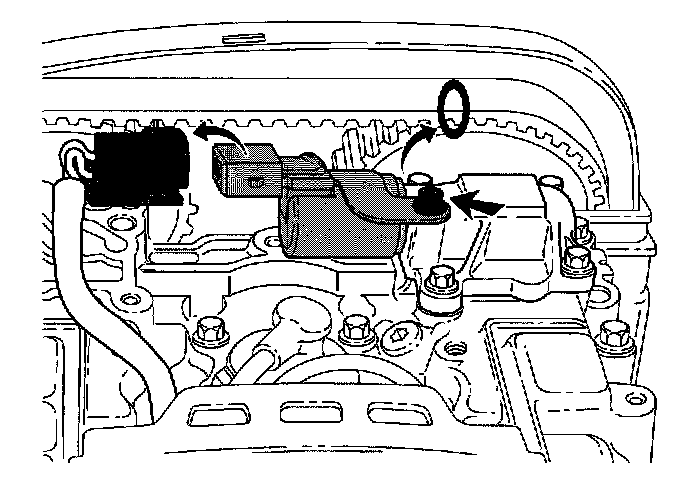

Removing the variable valve timing system
- Remove the connector and the wiring beside the connector
- Remove the screw
- Carefully pull the device off
- Remove the O-ring.

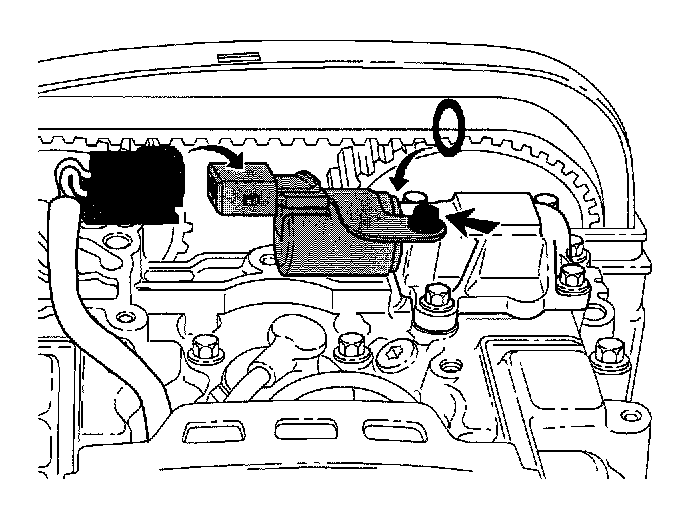

Install the variable valve timing system
- Wipe up any spilled oil. Clean the mating surfaces
- Install a new O-ring
- Position the system. Turn the system into the correct position
- Install the bolt. Tighten to 8 Nm
- Connect the wiring.
Install the cover on the timing gear
Start the engine. Check for leakage.
