Procedures

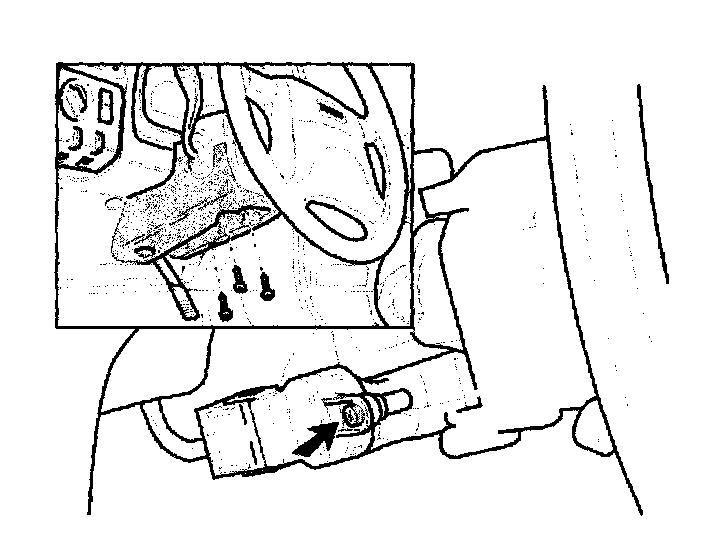

Replacing the ignition switch -
Remove the lower steering shaft cover (3 screws).
-
Remove the mounting screw on the back of the
ignition switch.
-
Disconnect the
ignition switch connector.
Reinstall the components in reverse order.
-
Check the function.
