Replacing Washer Level Sensor

Replacing the washer level sensor

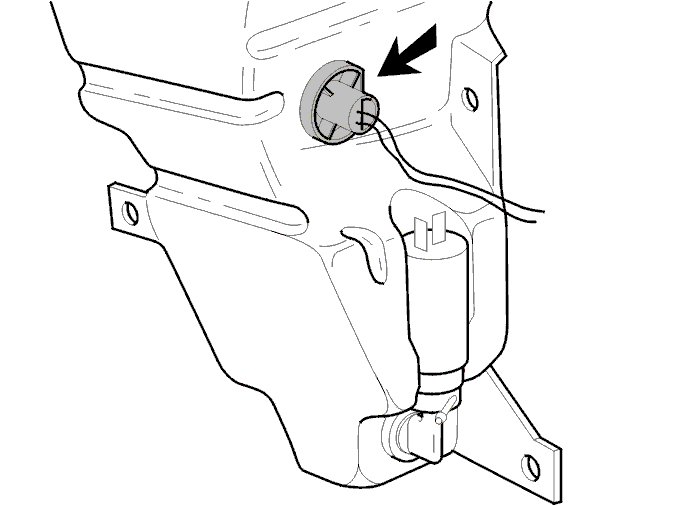

Remove the washer level sensor




- Ignition off
- Remove the front splashguard on the right hand side to access the pump
- Drain the reservoir
- Separate the connector

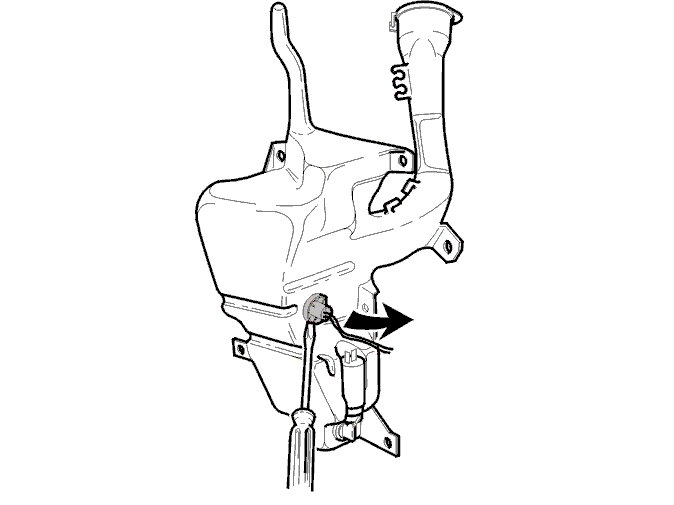

- Remove the sensor. Press it out carefully using a large screwdriver.

Install the windshield washer fluid sensor





Hint: Before installing the pump, immerse the housing in water or a soap solution to avoid compressing the rubber seal.

- Install the sensor. Press it carefully into place.

Note! correct sensor position (flat edge to the right)

- Connect the connector to the sensor
- Fill the reservoir. Check for leakage
- Install the front splashguard.
