Positive Crankcase Ventilation: Locations

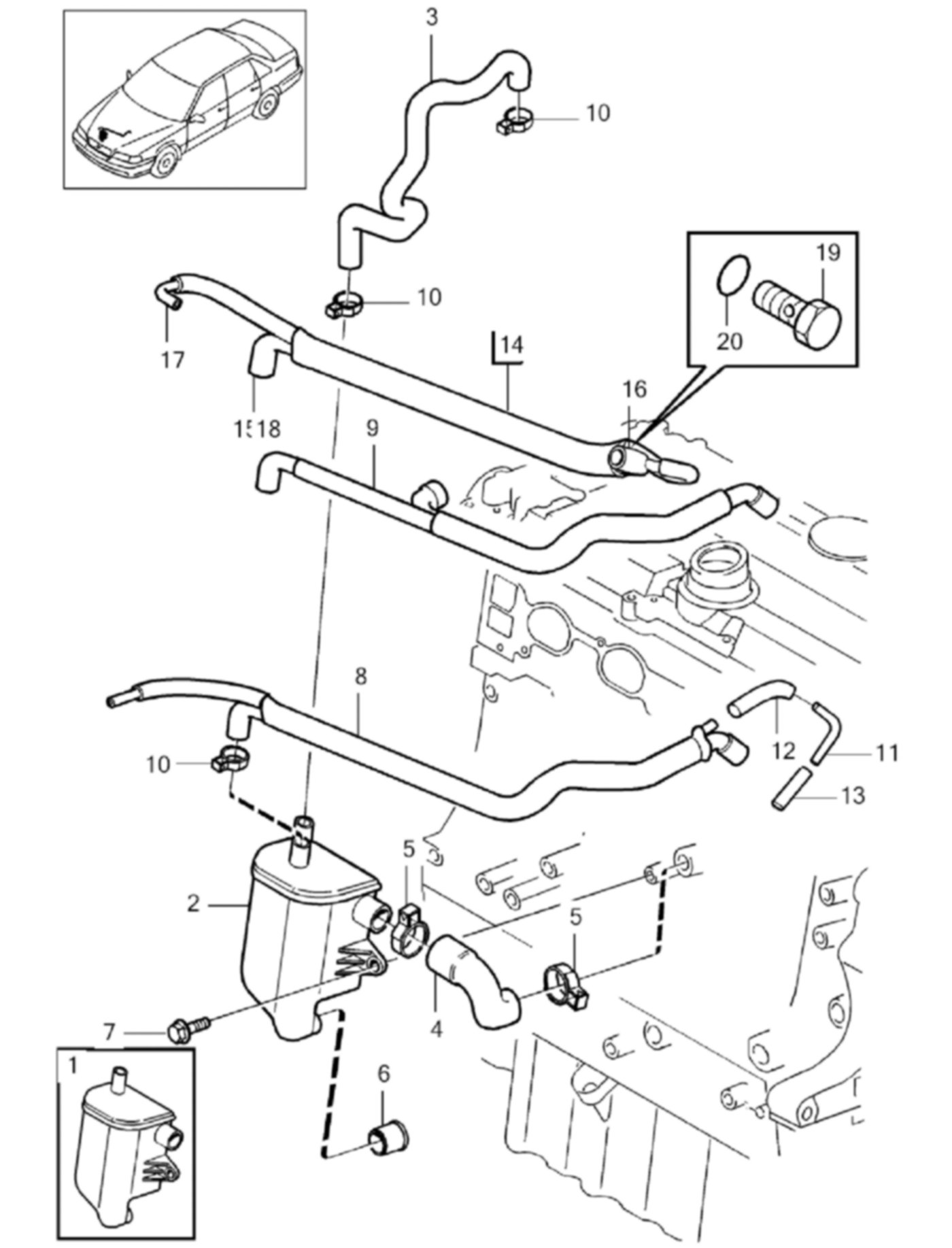

Crankcase Ventilation

1. Oil trap
2. Oil trap
3. Hose
4. Hose
5. Hose clamp
6. Hose
7. Flange screw
8. Pipe, complete
9. Pipe, complete
10. Hose clamp
11. Pipe, by the meter
12. Hose, by the meter
13. Hose, by the meter
14. Tube
15. Coupling piece
16. Coupling piece
17. Coupling piece
18. Coupling piece
19. Hollow screw
20. Gasket
